Series 127 Pressure Reducing

Series 127 Pressure Reducing

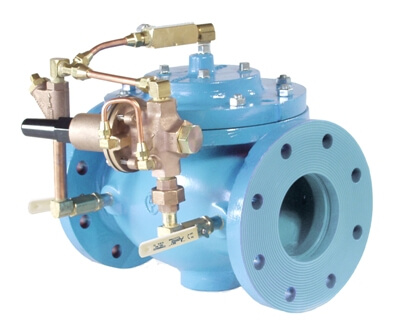

Valve Features

  • Operates automatically off line pressure.
  • Heavy-duty, nylon-reinforced diaphragm.
  • Rectangular-shaped, soft seat seal provides drip-tight Class VI closure.
  • Diaphragm assembly Guided top and bottom.
  • Throttling seat retainer for flow and pressure stability.
  • Easily maintained without removal from the line.
  • Replaceable seat ring.
  • Alignment pins assure proper reassembly after maintenance.
  • Valves are factory tested.
  • Valves are serial numbered and registered to facilitate replacement parts and factory support.

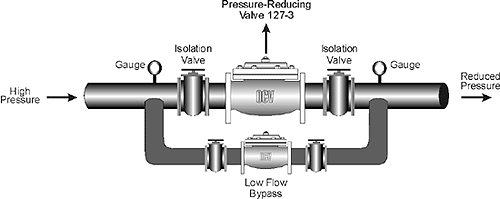

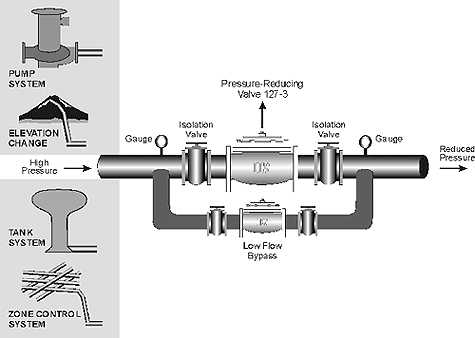

Regardless of the source of high pressure, the 127-3 reduces that pressure to a constant discharge pressure, despite fluctuations in the demand or inlet pressure. Here, a parallel valve arrangement is used to handle a wide range of demand.
(see Sizing Pressure Reducing Valves)

127_1

Valve Operation

  • Maintains a constant downstream pressure despite fluctuations in demand and inlet pressure.
  • Assuming proper sizing and adjustment, the 127-3 will maintain downstream pressure at the set point ± 2 psi.

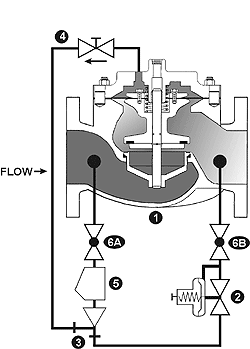

  1. Model 65 Basic Control Valve, a hydraulically-operated, diaphragm-actuated globe or angle valve which closes with an elastomer-on-metal seal.
  2. Model 1340 Pressure-Reducing Pilot, a two-way, normally-open pilot valve which senses down stream pressure under its diaphragm and balances it against an adjustable spring load. An increase in downstream pressure tends to make the pilot close.
  3. Model 126 Ejector, a simple “tee” fitting with a fixed orifice in its upstream port. It provides the proper pressure to the diaphragm chamber of the main valve, depending on the position of the pressure-reducing pilot.
  4. Model 141-3 Flow Control Valve, a needle-type valve which provides adjustable, restricted flow in one direction and free flow in the opposite direction. On the 127-3, the flow control valve is connected as an opening speed control.
  5. Model 159 Y-Strainer, (standard on water service valves), the strainer protects the pilot system from solid contaminants in the line fluid.
  6. Two Model 141-4 Ball Valves, (standard on water service valves, optional on fuel service valves), useful for isolating the pilot system for maintenance or troubleshooting.

127_2

Pilot

  • Accurate sensing of outlet pressure.
  • Simple, single adjustment.
  • All parts replaceable while mounted on valve.
  • Rubber-to-metal seat for positive shut-off.
  • Large area diaphragm for quick, precise throttling.
  • Visual indication of diaphragm condition.
  • Bronze and stainless steel construction.

1340

127_3

Pilot Materials
Low-Lead Bronze
Stainless Steel
Spring Ranges
5-30, 20-80, 20-200, 100-300 psi

2420

127_4

Pilot Materials
Stainless Steel
Spring Ranges
200-750 psi

The Model 1340 & 2420 Pressure Reducing Pilot controls the amount of pressure in the upper chamber of the main valve (hence, the degree of opening or closing of the main valve). The downstream system pressure is sensed under the pilot to close, increasing the amount of pressure in the upper chamber of the main valve causing it to close a proportionate amount to maintain a constant discharge pressure. As the downstream pressure decreases, the pilot begins to open, allowing the pressure in the upper chamber of the main valve to decrease, causing the main valve to open. This is a constant modulating action compensating for any change in downstream system pressure.

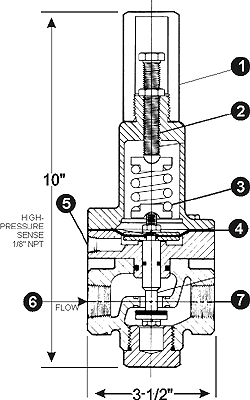

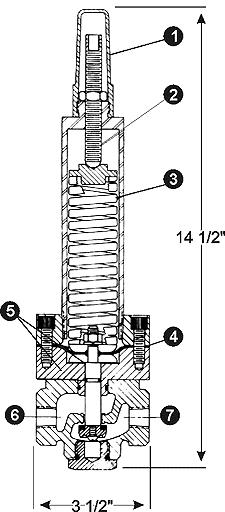

MODEL 1340 / 2420 Pressure Reducing Pilot

  1. Adjusting Screw Cover
  2. Adjusting Screw
  3. Spring
  4. Diaphragm
  5. Pressure Sense
  6. Pilot Inlet
  7. Pilot Outlet

Sizing

SIZING OF SERIES 127 Pressure Reducing

For the most comprehensive procedure in sizing pressure reducing valves, it is best to use our ValveMaster software or the Performance Charts in the Engineering Section of the OCV catalog. In the absence of these, the following procedure will get you where you need to be, and enable you to avoid the most common error in sizing PRV’s: an oversized valve.

PROCEDURE

The following procedure takes both factors (flow rate/pressure drop) into account through the use of the flow coefficient, or Cv. The theory is simple: for best results, a PRV should be sized to operate between 10% and 90% of its capacity, or in other words, between 10% and 90% of its wide open Cv. It is a four-step procedure:

STEP 1:

Calculate Cv Minimum

Q Minimum = Minimum anticipated flow, GPM
S = Specific gravity of fluid (water = 1.0
P1 = Inlet pressure at Q minimum, psi
Ps = Desire outlet pressure, psi
127_5

STEP 2:

Calculate Cv Miaximum

Q Max. = Maximum anticipated flow, GPM
P2 = Inlet pressure at Q maximum, psi
Ps = Desired outlet pressure, psi
127_6

STEP 3:

From the table, find the size that includes both the Cv min. and Cv max. you have calculated in either the globe or angle valve column.

STEP 4:

From the table check that the velocity (GPM) at the calculated Q max. does not exceed 25 ft/sec.

Occasionally, the flow range is so wide that both the Cv min. and Cv max. will not fit in the proper range for any one size valve. In such cases, a parallel valve installation, with a smaller valve by passing around a larger one, should be given strong consideration. The valves should be sized so that:

127_7

FLOW CHARACTERISTICS



127_8

Cavitation

Pressure reducing valves are, by their application, subject to pressure differentials that may induce cavitation. Often when these conditions exist, it may be only on an intermittent basis, causing minimum concern for valve deterioration.

Charts that index only inlet and outlet pressures cannot accurately predict this complex phenomenon. The easiest way to predict cavitation is to let us do the calculation. Simply fax, e-mail or call us and we will provide a graphical analysis and a solution, often simpler and less costly than the classic one: that of using two valves in series.

Provide us:

  1. VALVE SIZE
  2. FLOW RANGE – Minimum – Maximum
  3. FLUID VAPOR PRESSURE (if other than water)
  4. INLET PRESSURE – OUTLET PRESSURE
  5. FLUID

Valve Selection Guide

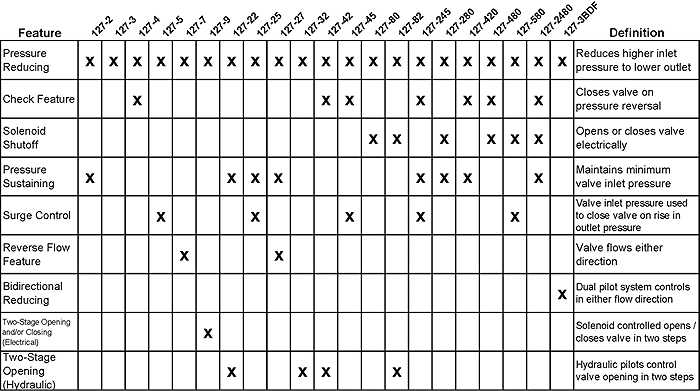

By combining various control pilots, multiple valve functions can be performed on a single Series 127 Pressure Reducing Valve. To find the combination function valve, select the desired features and then the model number.

This chart shows only a sample of those most often specified valves. Consult the factory for specific data on the model you selected.

Combination valves can often reduce or eliminate other equipment. Example: If the system requires a Pressure Reducing Valve and a Check Valve, the check feature can be added as a function of the PRV, Model 127-4.

127_9

HIGH PRESSURE / HP
When valve outlet pressure requires the model 2420 High Pressure Reducing pilot, an HP is added to the end of the model number. Example: Standard model 127-3 (outlet ranges from 5 – 300 psi) Model 127-3HP (outlet ranges 200-750 psi)

LOW FLOW BY-PASS / LF
Most valves listed in this guide can be equipped with an intregral Low Flow By-pass regulator, an LF is added to the end of the model number. Example: Model 127-3 with low flow by-pass is 127-3LF. Valve sizing is an important aspect in correct use of this feature.

Material Specifications

Water-Brochure_-Spec-Sheet-2014

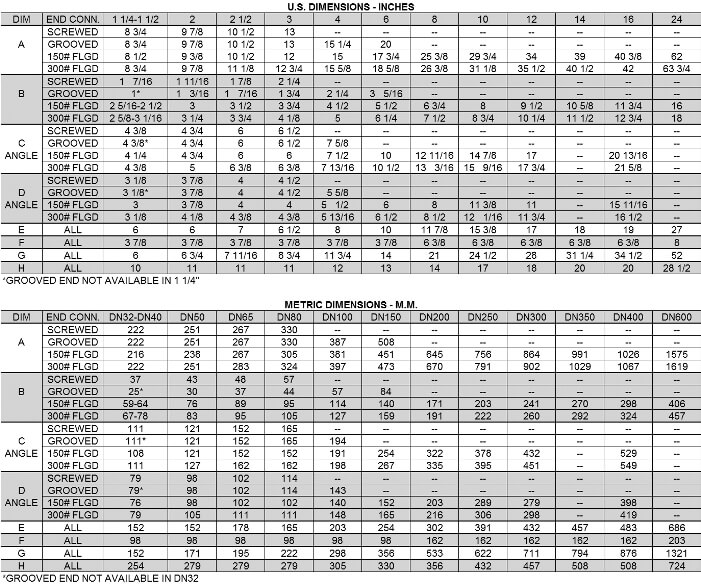

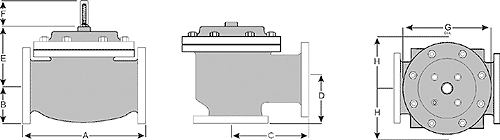

Dimensions

127_9

For maximum efficiency, the OCV control valve should be mounted in a piping system so that the valve bonnet (cover) is in the top position. Other positions are acceptable but may not allow the valve to function to its fullest and safest potential. In particular, please consult the factory before installing 8″ and larger valves, or any valves with a limit switch, in positions other than described. Space should be taken into consideration when mounting valves and their pilot systems.

A routine inspection & maintenance program should be established and conducted yearly by a qualified technician. Consult our factory @ 1-888-628-8258 for parts and service.

108_9

HOW TO ORDER YOUR VALVE

When Ordering please provide:
Series Number – Valve size – Globe or Angle – Pressure Class – Screwed, Flanged, Grooved – Trim Material – Adjustment Range – Pilot Options – Special needs / or installation requirements.
