Series 8000 Float Control

Series 8000 Float Control

The OCV Series 8000 float control valves are designed to maintain a desired level in a tank or reservoir by opening for filling the tank when fluid is below the high level point and closing tightly when the desired level is reached.

Float control valves On/Off
Model Model Sheet Model Sheet (metric) Specifications Animation Operations Manual
Model 8000 Float Valve (On/Off) PDF Logo

Valve Features

  • Operates automatically off line pressure.
  • Heavy-duty, nylon-reinforced diaphragm.
  • Rectangular-shaped, soft seat seal provides drip-tight Class VI closure.
  • Diaphragm assembly Guided top and bottom.
  • Throttling seat retainer for flow and pressure stability.
  • Easily maintained without removal from the line.
  • Replaceable seat ring.
  • Alignment pins assure proper reassembly after maintenance.
  • Valves are factory tested.
  • Valves are serial numbered and registered to facilitate replacement parts and factory support.

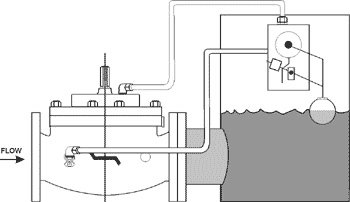

BOTTOM FILL PILOT REMOTE MOUNTED

8000_1

TOP FILL PILOT VALVE MOUNTED

8000_1

Valve Operation

8000_4

VALVES 1 1/4” – 6”

8000_2

When the float is in the “down” position, the pilot port “C” is connected to the “E” port. This vents the diaphragm chamber of the main valve, allowing it to open. The tank fills through the valve until the desired high level is reached; i.e., the float reaches the “up” position. At this point, a connection is made in the pilot from “S” to “C” ports. This applies inlet pressure to the diaphragm chamber of the main valve, causing it to go fully closed.

VALVES 8” – Larger

8000_3

The description for the smaller 1-1/4″-6″ valves still applies except that the float pilot alternately vents or pressurizes the diaphragm chamber of the three-way auxiliary pilot. In relay fashion, the auxiliary pilot then vents or pressurizes the diaphragm chamber of the main valve.



Pilot

8000_5

Installation

Model 814 Float Pilot

The OCV Model 814 Float Pilot is a float-actuated, three-port, rotary disc pilot designed to provide on-off action to an OCV Model 65 main valve.

It features the following:

  • Integral mounting plate to facilitate installation within the tank.
  • Designed for mounting above the fluid level to prevent a cross-connection.
  • High and low level points are independently adjustable, allowing for optimum tank cycling.



The basic principle of operation of the 814 pilot is quite straightforward. There are three sets of ported passages in the pilot body, and matching sets in the lapped rotary disc.

  • With the float “down”, the “S” port is blocked, and the “C” port is connected to “E” port. This allows the pilot to vent the diaphragm chamber of a main valve or auxiliary pilot, thus opening the main valve.
  • With the float “up”, the “E” port is blocked, and “S” is connected to “C” port. This allows the pilot to pressurize the diaphragm chamber of the main valve or auxiliary pilot, thus closing the main valve.

FLOAT PILOT INSTALLATION

To protect the float ball from wave action within the tank, it is highly recommended that the float be installed in a stilling well. This is especially critical if the fill line exits into the top of the tank.

VALVE INSTALLATION

For maximum efficiency, the OCV control valve should be mounted in a piping system so that the valve bonnet (cover) is in the top position. Other positions are acceptable but may not allow the valve to function to its fullest and safest potential.

In particular, please consult the factory before installing 8″ and larger valves, or any valves with a limit switch, in positions other than described.

Sizing

SIZING OF SERIES 8000 FLOAT CONTROL

While most Model 8000 valves are line sized, there are two factors that should be checked. Maximum flow rate should not exceed 25 ft/sec, in other words don’t use too small a valve. At the same time, you don’t want the valve so large that when it opens, it drops the system pressure so low that there is not enough pressure to close the valve when high level is reached. Our ValveMaster selection and sizing software covers this in detail. However, if you do not have the software, sizing within the flow limitations shown in the following table should result in satisfactory operation.

If the flow rate for a given valve will fall below the minimum, you might consider adding a pressure sustaining feature (Model 8000-3).

FLOW CHARACTERISTICS

8100_10

Valve Selection Guide

By combining various control pilots, multiple valve functions can be performed on a single Series 8000 Float Control Valve. To find the combination function valve, select the desired features and then the model number. This chart shows only a sample of those most often specified valves. Consult the factory for specific data on the model you selected.

Combination valves can often reduce or eliminate other equipment. Example: If the system requires a Pressure Sustaining function, the sustaining feature can be added as a function of the Float Valve, Model 8000-3.

8000_8

Material Specifications

Water-Brochure_-Spec-Sheet-2014

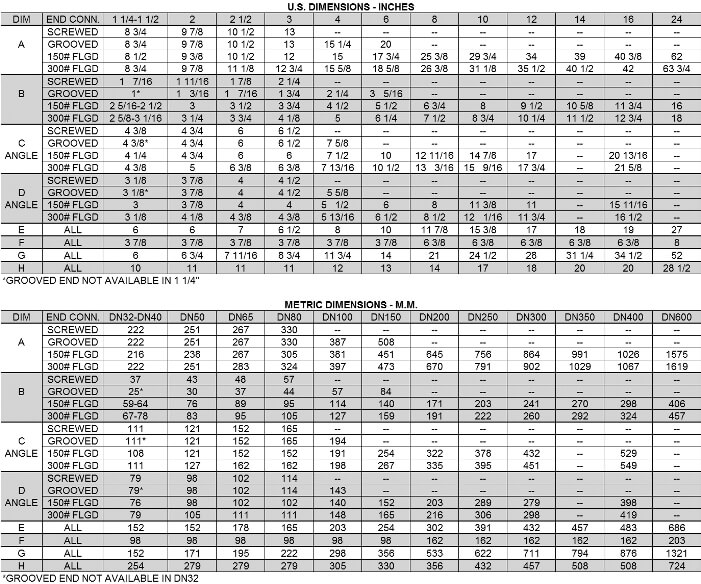

Dimensions

8000_6



For maximum efficiency, the OCV control valve should be mounted in a piping system so that the valve bonnet (cover) is in the top position. Other positions are acceptable but may not allow the valve to function to its fullest and safest potential. In particular, please consult the factory before installing 8″ and larger valves, or any valves with a limit switch, in positions other than described. Space should be taken into consideration when mounting valves and their pilot systems.

A routine inspection & maintenance program should be established and conducted yearly by a qualified technician. Consult our factory @ 1-888-628-8258 for parts and service.

66_7

HOW TO ORDER YOUR VALVE:

When Ordering please provide:
Series Number – Valve size – Globe or Angle – Pressure Class – Screwed, Flanged, Grooved – Trim Material – Adjustment Range – Pilot Options – Special needs / or installation requirements.
