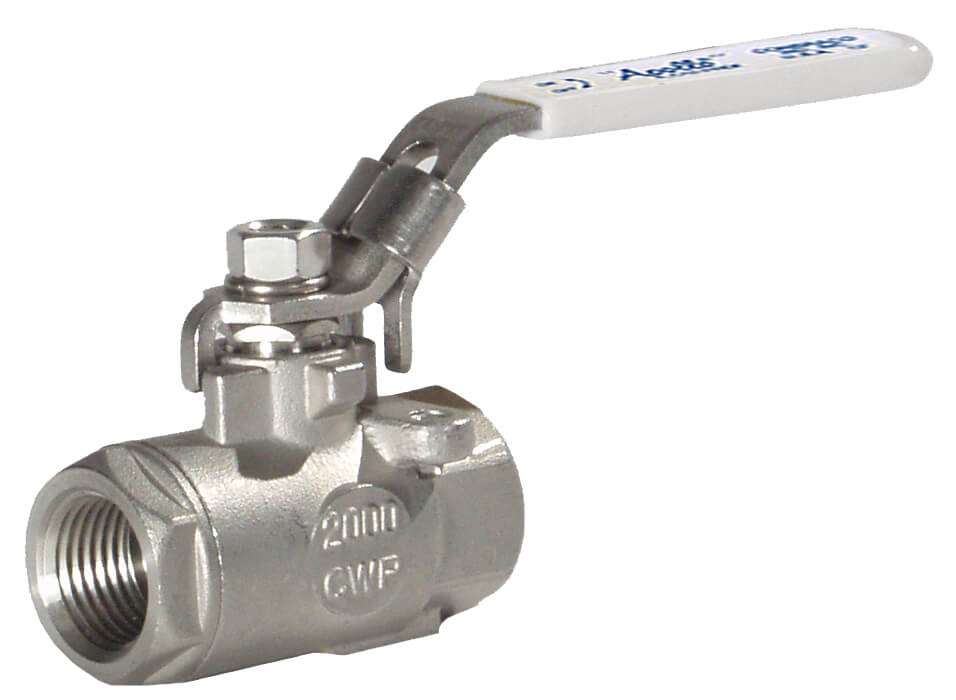

141-4 Ball Valve

The Model 141-4 Ball Valve is a 1/4-turn shutoff device used for isolating the pilot system from the main valve. They are extremely useful for performing routine maintenance and troubleshooting.

Ball valves are standard on water service valves; optional on fuel service valves.

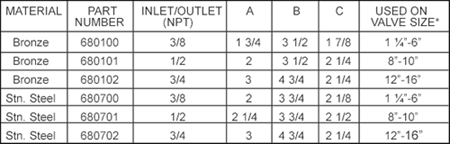

MODEL 141-4 MATRIX

141-4matrix141-4drawing

SCHEMATIC SYMBOL

The Model 141-4 Ball Valve is shown on OCV Valve Schematics as:   141-4symbol

141-4schematic
EXAMPLE: Shown here on a MODEL 127-4 Pressure Reducing / Check Valve.
