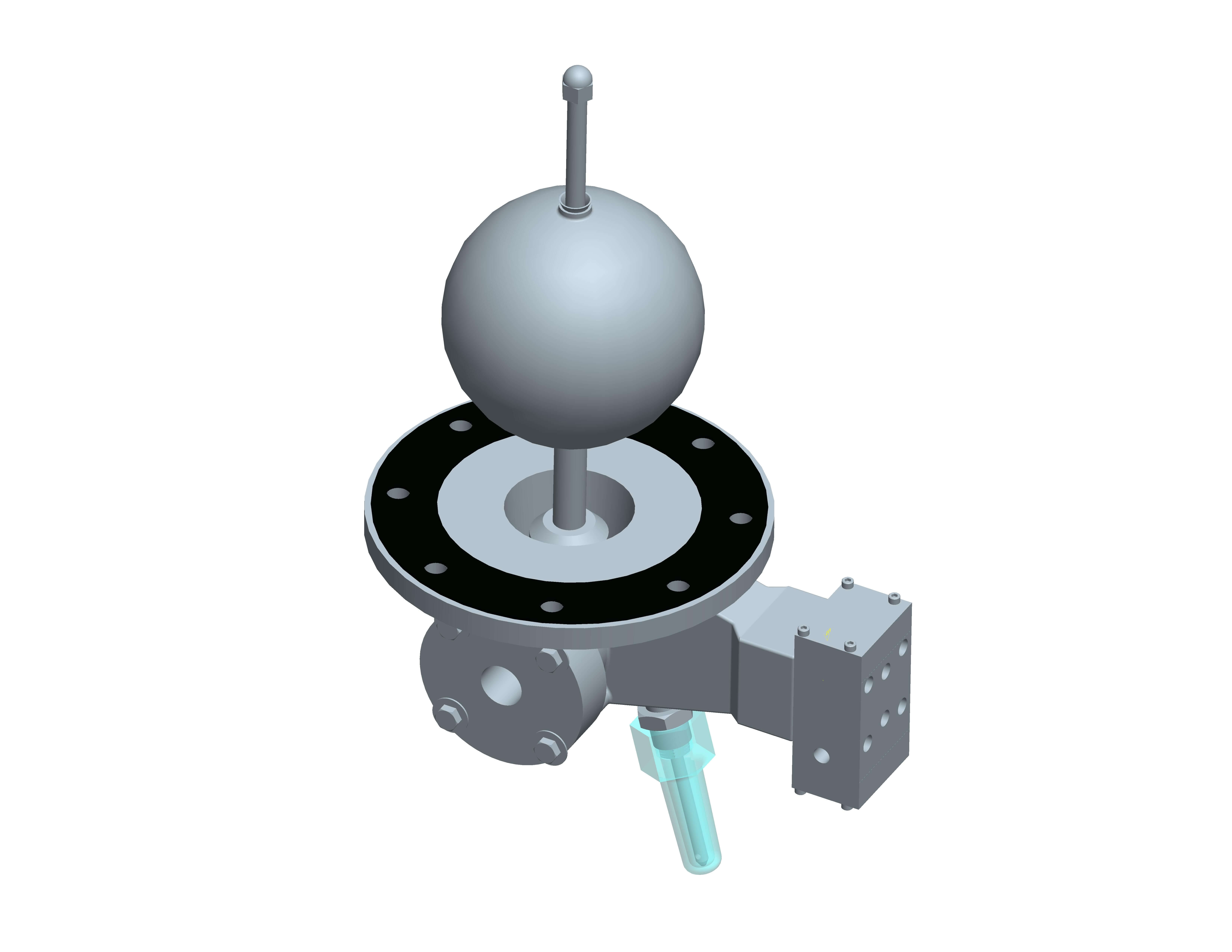

800B Interface Pilot-Bottom Mounted

  • Bottom-mount flange (7.5″ diameter)
  • Integral water drain valve optional
  • Pilot float “rides” the interface between water and fuel
  • Four-way control to actuate discharge slug valve and/or automatic water drain valve
  • Uses time-proven 800 pilot block (see Model sheet 800)
  • Stainless Steel pilot and float assembly
  • Manual tester standard
  • Factory tested



The Model 800B is a bottom-mounted filter separator float that allows only the discharge of clean, water-free fuel from the filter separator.   The four models are as follows:

MODEL

PART NUMBER
( without water drain)

FLANGE MATERIAL

PILOT/FLOAT
ASSEMBLY

800B-4MT230213BronzeStainless Steel
800B-5MT230773Ductile Iron, Epoxy coatedStainless Steel
800B-6MT230783Stainless SteelStainless Steel
800B-8MT230872AluminumStainless Steel



PILOT BLOCK PORT CONNECTIONS (All ports 1/8” NPT)

POWER: Filter separator vessel pressure

ACCELERATOR VALVE: Bonnet of accelerator pilot on discharge slug valve

WATER DRAIN: Bonnet of automatic water drain valve

EXHAUST: Atmospheric drain line

OPERATION

The float of the 800B is counter-weighted so that it will float in water, but sink in fuel.   Depending on the water level in the filter separator, the 800B actuates the other control components in the system as follows:

FLOAT POSITIONDISCHARGE (SLUG) VALVEWATER DRAIN VALVE
(if equipped)
DOWN (No Water)OPENCLOSED
MEDIAN (Rising Water)OPENOPEN
UP (High Water)CLOSEDOPEN



Actuating the manual tester will raise the float to the median or up positions, confirming the proper operation of the pilot, slug valve, and/or the water drain valve.

MAXIMUM PRESSURE: 300 psi (20.7 bar)

OPERATING TEMPERATURE: 32°-120°F (0°-49°C)

MAXIMUM FUEL SPECI FIC GRAVITY: 0.85
