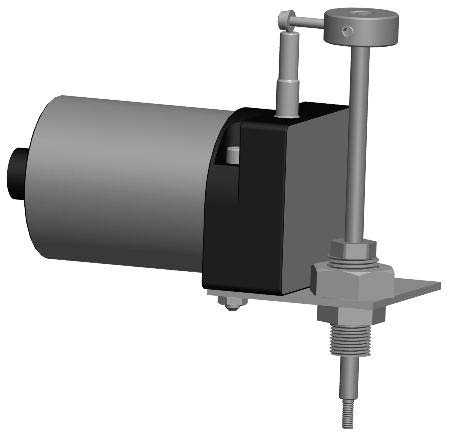

190 Position Transmitter

The Model 190 Position Transmitter is a device that uses movement of the valve stem to provide a 4-20mA analog signal proportional to the valve position. The signal increases as the valve opens. It consists of an adaptor threaded into the center port of the valve bonnet, a rod threaded into the main valve stem, a stem seal, and the transmitter unit. The position transmitter is linear, linked to the indicator rod with with a stainless steel cable.The unit requires a user-furnished VDC power supply (typically 24VDC). It may be installed on virtually any OCV control valve, and can be done so without any disassembly of the valve itself.

  • Provides 4-20mA signal, proportional to valve position.
  • Installed without disassembly of valve.
  • Enclosure is weatherproof NEMA 4 (IP – 6S)

MODEL 190 DIMENSIONS

190_transmitter_mid_image

MATERIALS

Indicator Rod: Monel

Adapter: Stainless Steel

Mounting Plate: Stainless Steel

NOTE: Factory recommended valve installation should allow for indicator rod to be in the vertical position.

SPECS

VOLTAGE REQUIREMENT: 9-35 VDC (by user)
ANALOG OUTPUT: 4-20 mA into maximum 650 ohm load with 24 VDC power supply (max load = 50 (supply voltage – 9)
LINEARITY: +/- 0.30% full scale
REPEATABILITY: +/- 0.15% full scale

+/- 0.15% full scale

CONNECTION: Two-wire current loop
