141-1 Check Valve

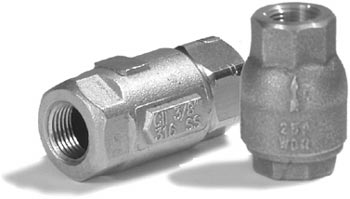

The Model 141-1 Check Valve uses a spring-loaded poppet that will allow flow in one direction only. It is the primary component used on valves with a reverse flow check function. Flow is in the direction of the arrow on the check valve body.

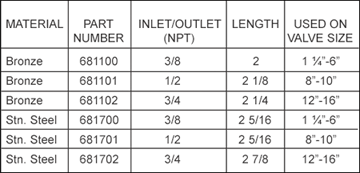

MODEL 141-1 MATRIX

141-1dimensions

SCHEMATIC SYMBOL

The Model 141-1 Check Valve is shown on OCV Valve Schematics as:  141-1screen

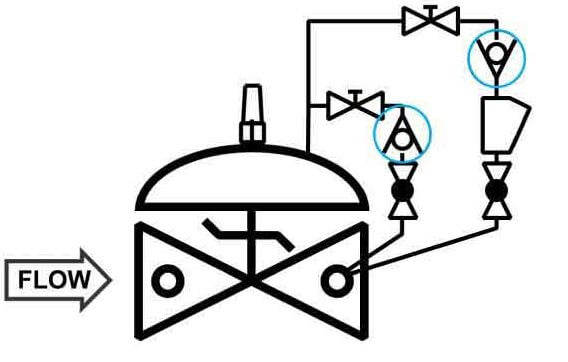

141-1-Check-image
EXAMPLE: Shown here on a MODEL 94-3 Check Valve.
