Accessories & Parts

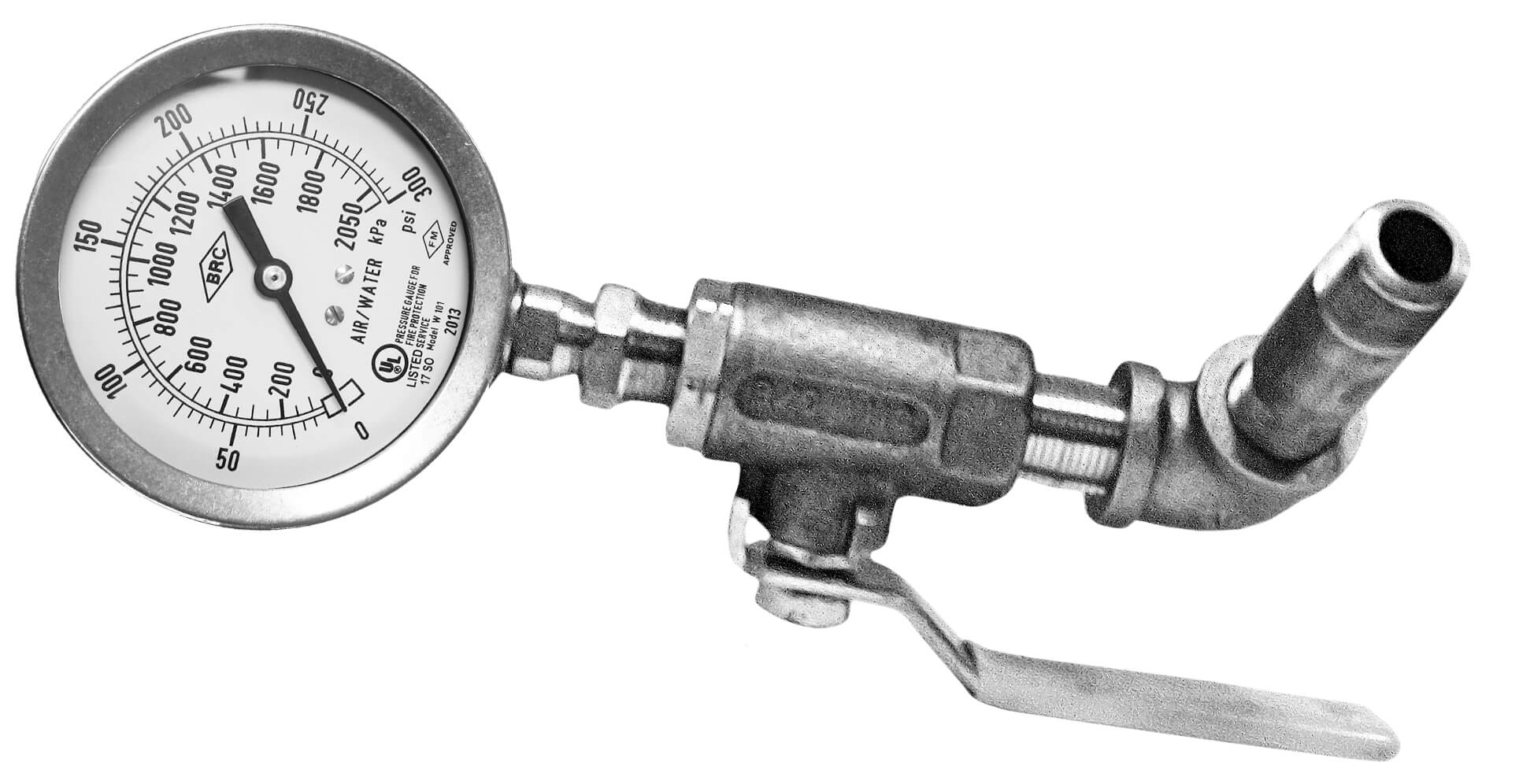

PGK Gauge Kit

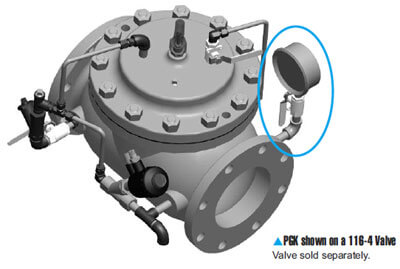

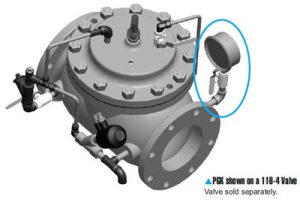

The Model PGK is a pre-assembled kit including an isolation ball valves and pressure gauge which can be installed on the inlet or outlet side port of any basic OCV valve. This kit is shipped separately to avoid shipping damage and requires in-field installation.

MATERIALS

PRESSURE GAUGEPART #BALL VALVEFITTINGSUSED ON VALVE SIZES
0-300 psi, 0-20 bar Stn Stl
2-1/2″ Liquid Filled
200732**3/8″ Stn StlStn Stl1-1/4″-8″*
0-300 psi, 0-2050 kPa Brass
3-1/2″ UL/FM
2000113/8″ BronzeBrass/Stainless1-1/4″-8″*
0-300 psi, 0-20 bar Stn Stl
2-1/2″ Liquid Filled
200811**3/8″ BronzeBrass Stainless1-1/4″-8″*

*Includes 1/2″ X 3/8″ bushing.  *The PGK may be adapted for larger valves using larger bushings. Additional charges may apply.

**These gauge kits fall under OCV’s NSF 372 low-lead listing.

OLYMPUS DIGITAL CAMERA
