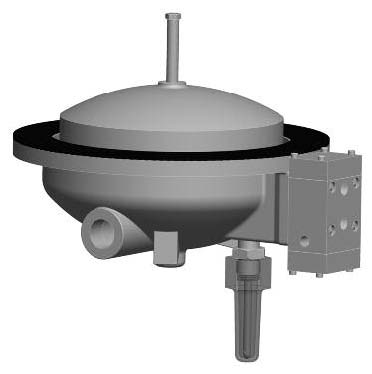

800H Interface Pilot-Bottom Mounted

  • Bottom-mount flange (10″ diameter)
  • Low profile float
  • Applicable where vertical clearance inside filter separator is limited
  • Integral water drain valve optional
  • Pilot float “rides” the interface between water and fuel
  • Four-way control to actuate discharge slug valve and/or automatic water drain valve
  • Uses time-proven 800 pilot block (see Model Sheet 800)
  • Stainless Steel pilot and float assembly
  • Manual tester standard
  • Factory tested

The Model 800H is a bottom-mounted filter separator float that allows only the discharge of clean, water-free fuel from the filter separator.   The three models are as follows:

MODEL

PART NUMBER
(without water drain)

FLANGE MATERIAL

PILOT/FLOAT
ASSEMBLY

800H-4MT230244BronzeStainless Steel
800H-5MT230044Ductile Iron, Epoxy CoatedStainless Steel
800H-8MT230544AluminumStainless Steel



PILOT BLOCK PORT CONNECTIONS (All ports 1/8” NPT)

POWER: Filter separator vessel pressure
ACCELERATOR VALVE: Bonnet of accelerator pilot on discharge slug valve
WATER DRAIN: Bonnet of automatic water drain valve
EXHAUST: Atmospheric drain line

OPERATION

The float of the 800H is counter-weighted so that it will float in water, but sink in fuel.   Depending on the water level in the filter separator, the 800H actuates the other control components in the system as follows:

FLOAT POSITION

DISCHARGE (SLUG) VALVE

WATER DRAIN VALVE
(if equipped)

DOWN (No Water)

OPEN

CLOSED

MEDIAN (Rising Water)

OPEN

OPEN

UP (High Water)

CLOSED

OPEN



Actuating the manual tester will raise the float to the median or up positions, confirming the proper operation of the pilot, slug valve, and/or the water drain valve.

MAXIMUM PRESSURE: 300 psi (20.7 bar)

OPERATING TEMPERATURE: 32°-120°F (0°-49°C)

MAXIMUM FUEL SPECI FIC GRAVITY: 0.85
