126 Ejector

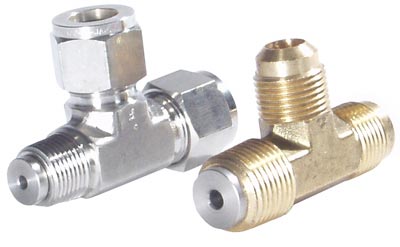

The Model 126 ejector is a simple tee fitting with a fixed orifice in its inlet port. It provides the proper supply pressure to the main valve diaphragm chamber, allowing various two-way control pilots to control the valve position.

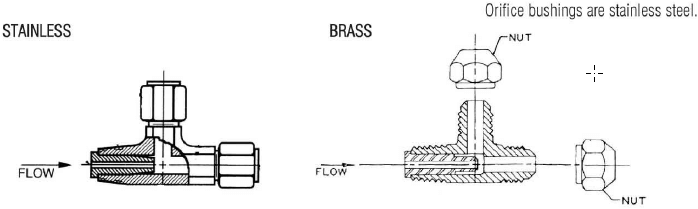

MODEL 126 EJECTOR DIAGRAM

Ejector-126-table

Brass Construction / Stainless Steel Construction

ejector-126-pics



SCHEMATIC SYMBOL

The Model 126 EJECTOR is shown on OCV Valve Schematics as:  126symbol

126schematic
EXAMPLE: Shown here on a MODEL 127-3 Pressure Reducing Valve.
