115-4DV

115-4DV

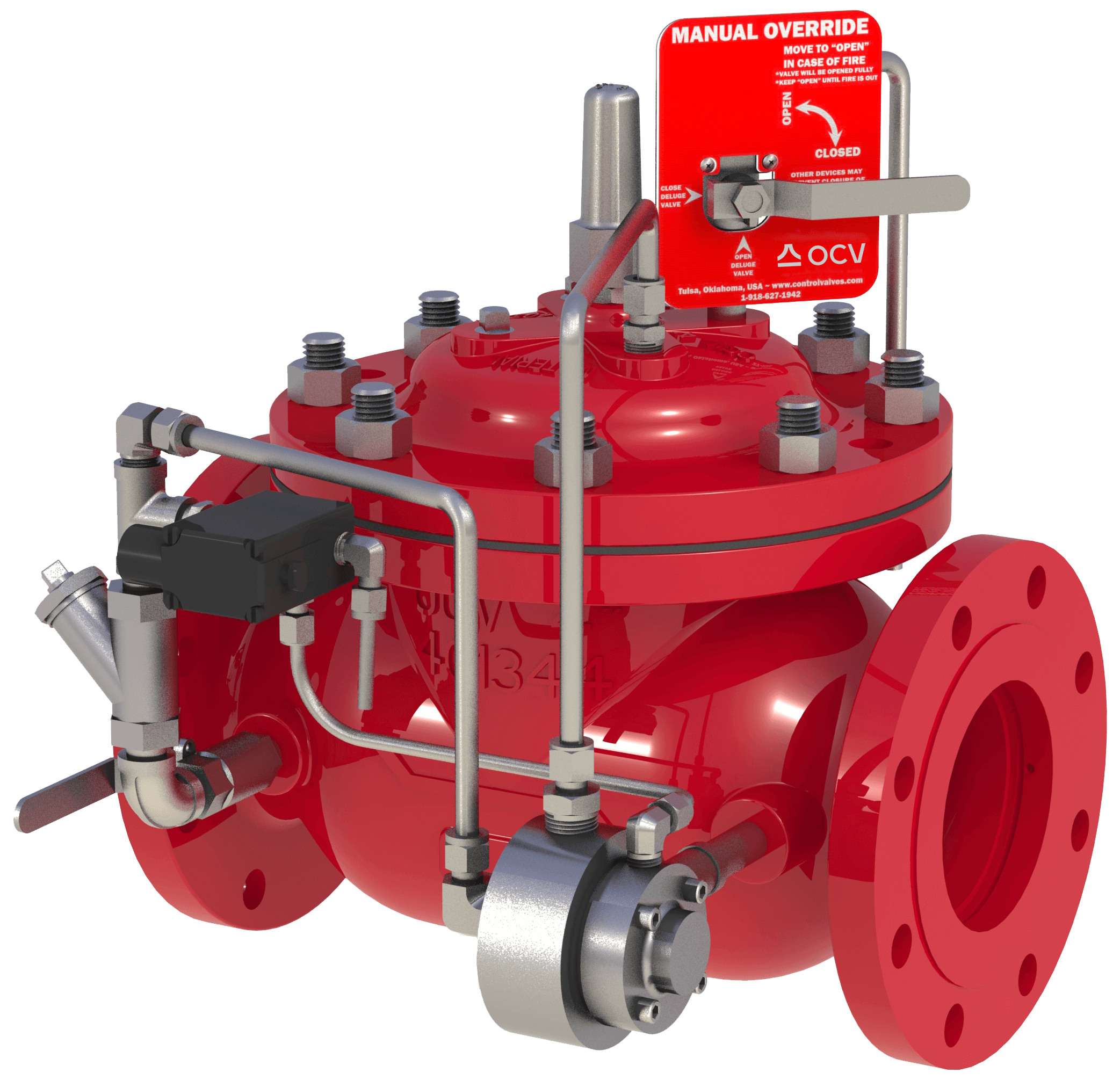

Electrically Actuated Deluge Valve

Electrically controlled deluge valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when a 3-way solenoid valve is energized. It closes drip tight when the solenoid valve is de-energized. An emergency manual release valve is fitted as standard.



FEATURES & BENEFITS

  • Opens quickly when the solenoid valve is activated (specify energize-to-open or energize-to-close)
  • Manual override to open the valve regardless of solenoid valve position
  • Visual indicator for indication of valve position
  • Large supply drain port to drain inlet side piping – globe only
  • Solenoid operated main valve
  • No adjustments necessary
  • Factory tested
  • Sizes 1.25” (DN32) – 16” (DN400)
  • Wide range of materials available including those for seawater service
  • Options available include opening and/or closing speed controls, limit switch assembly and pressure gauge(s)
