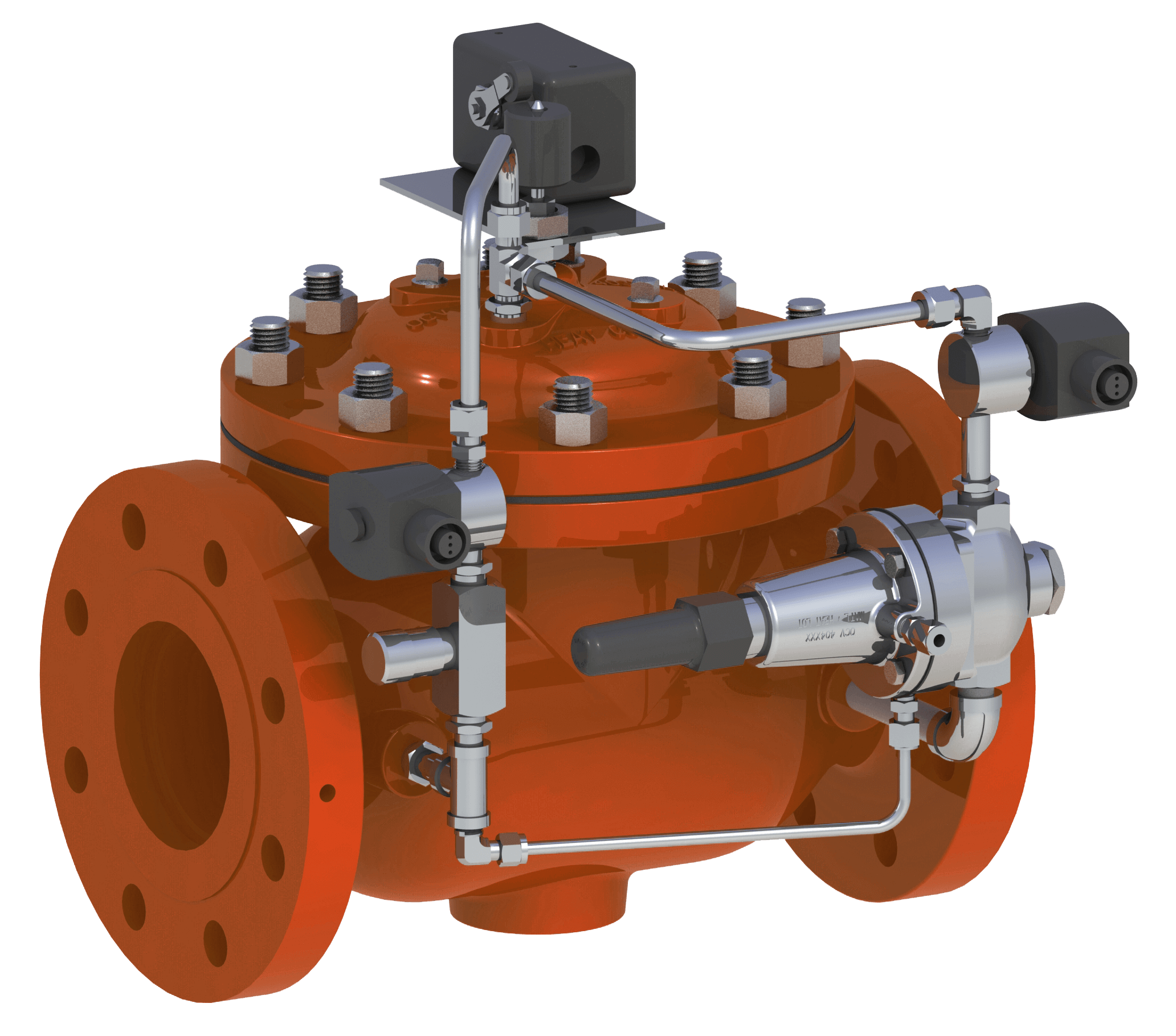

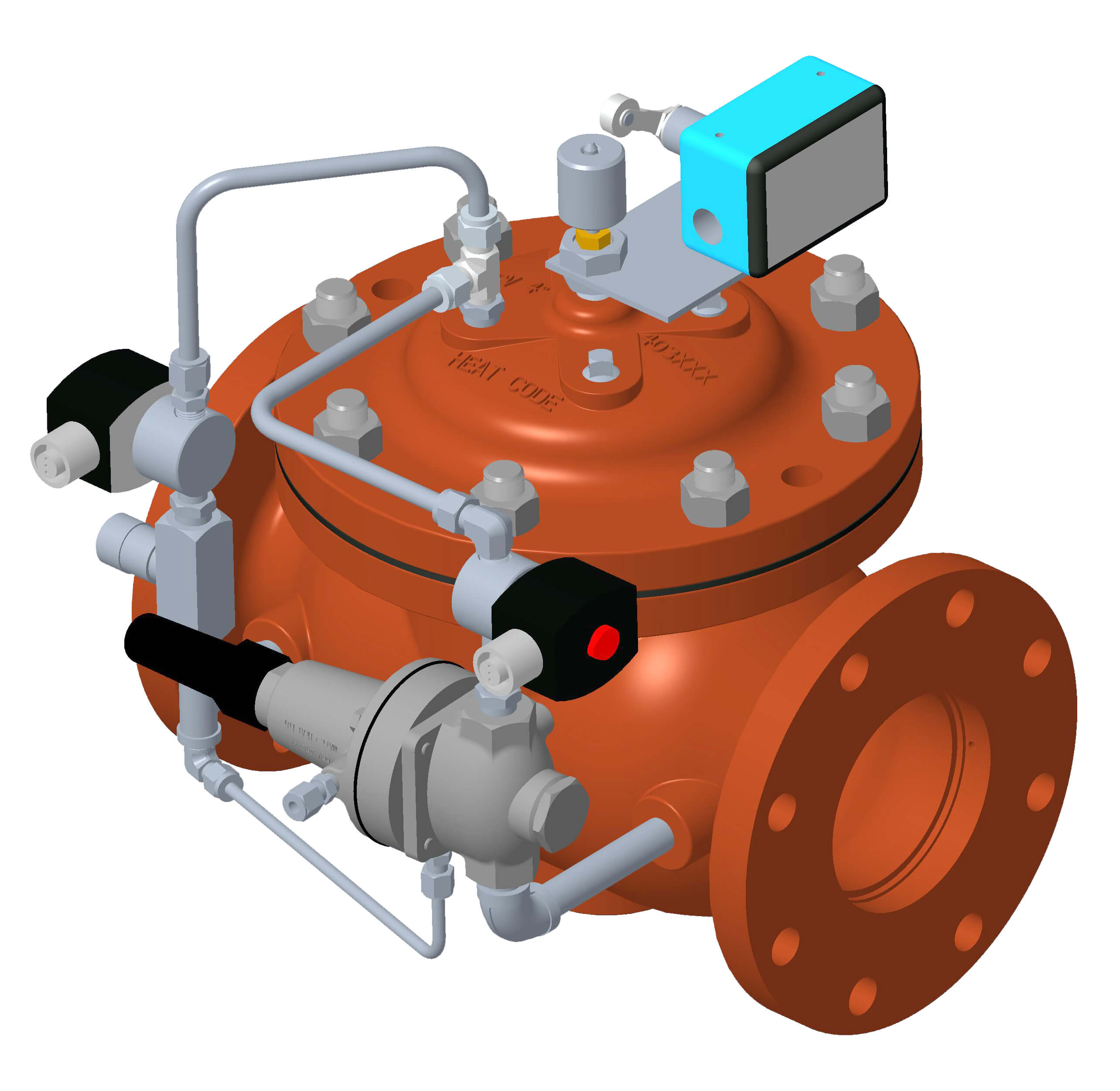

Model 110-9S Two-Stage Preset Valve

Model 110-9S Two-Stage Preset Valve

The 110-9S is specifically designed for fuel loading systems and performs the following
functions:

  • Electrical opening and two stage shutdown via preset register
  • Air Eliminator Functions – Main valve goes closed when air is detected at the air eliminator head and will re-open when all air has been exhausted from the air eliminator. This prevents air from passing through a meter and causing inaccurate readings.
  • LPG/LNG Functions –upstream pressure is held at a fixed value above vapor pressure
    to prevent flashing at the flowmeter

Model Features

  • Adjustable flow setting for 2nd stage dwell
  • Can be controlled by mechanical or electronic presets
  • Factory tested
  • Junction box options are available, with Explosion Proof ratings
  • Two-stage electronic opening options are available
  • Standard Class 1 Div 1 (Optional Class I Div 2, ATEX, IECEX)
