116-4FC

116-4FC

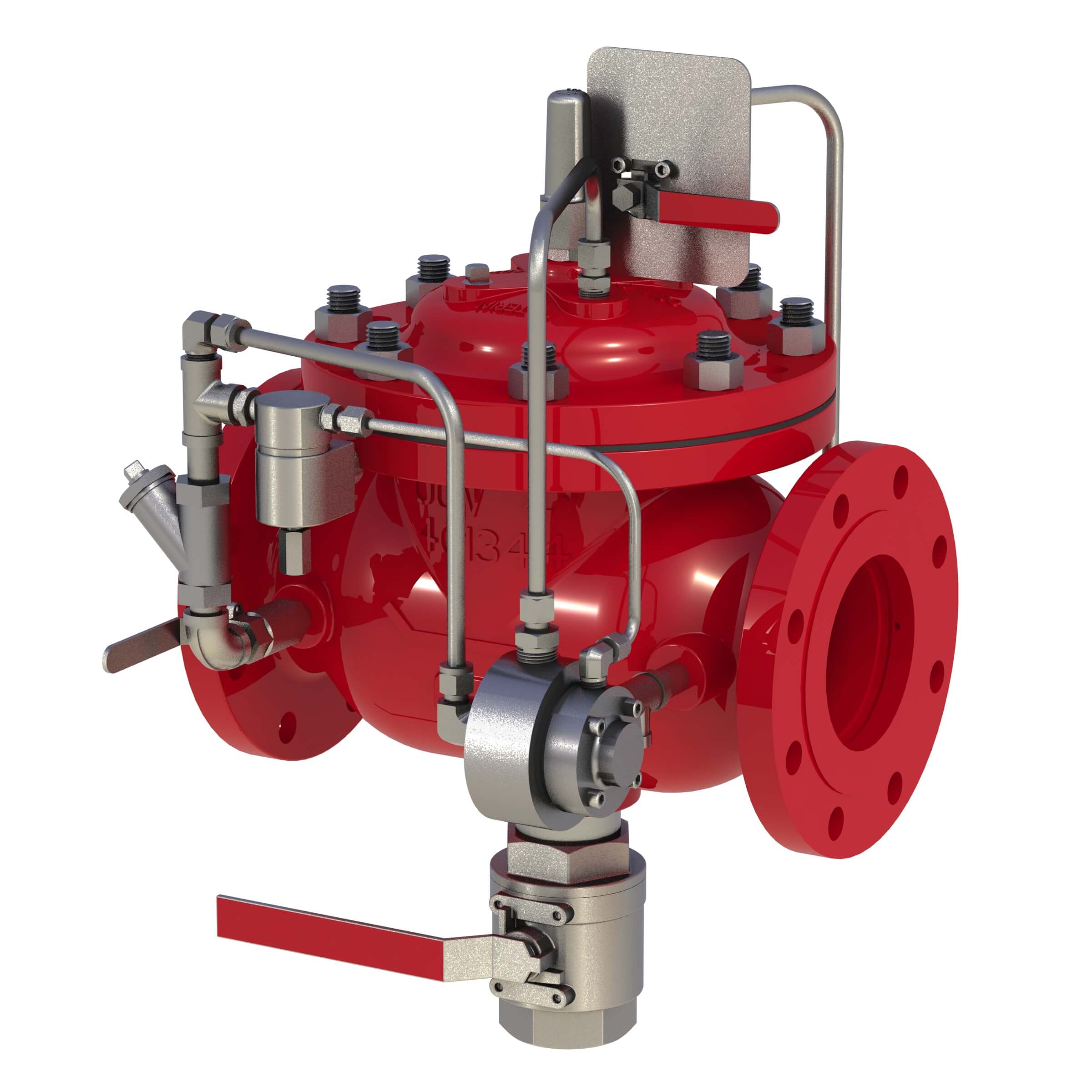

Electrically Actuated Deluge Valve

Electrically controlled deluge valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when a 3-way solenoid valve is energized. It closes drip tight when the solenoid valve is de-energized. An emergency manual release valve is fitted as standard.



FEATURES & BENEFITS

  • Opens quickly when the solenoid valve is activated (specify energize-to-open or energize-to-close)
  • Manual override to open the valve regardless of solenoid valve position
  • Visual indicator for indication of valve position
  • Large supply drain port to drain inlet side piping
  • Solenoid operated main valve
  • No adjustments are necessary
  • Factory tested
  • UL Listed for deluge service in sizes 3” thru 10”
  • Can be installed vertically or horizontally
  • ANSI Flanged Class #150 or Class #300
  • Wide range of materials available
  • Options available including opening and/or closing speed controls, limit switch assembly and pressure gauge(s)
