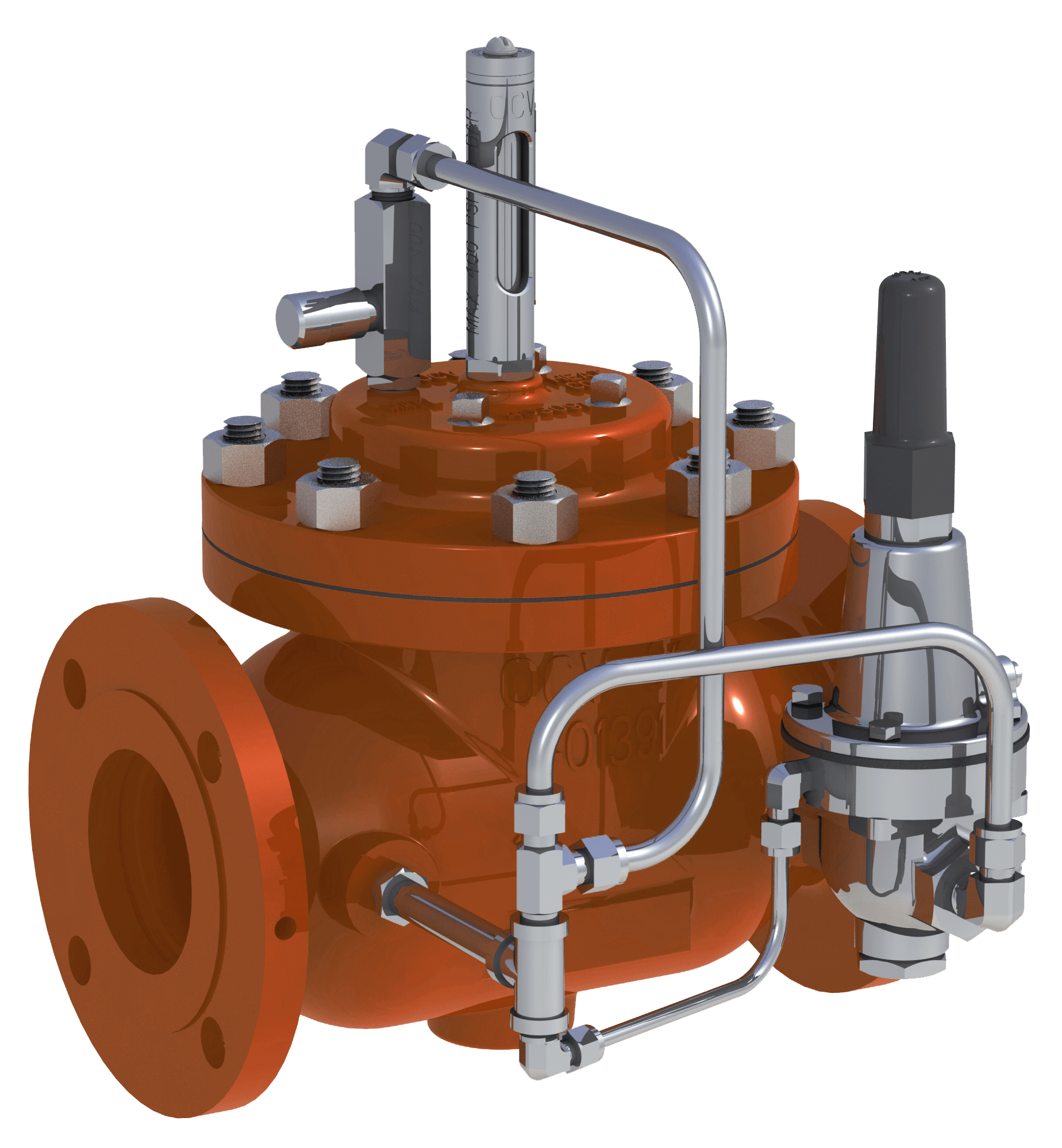

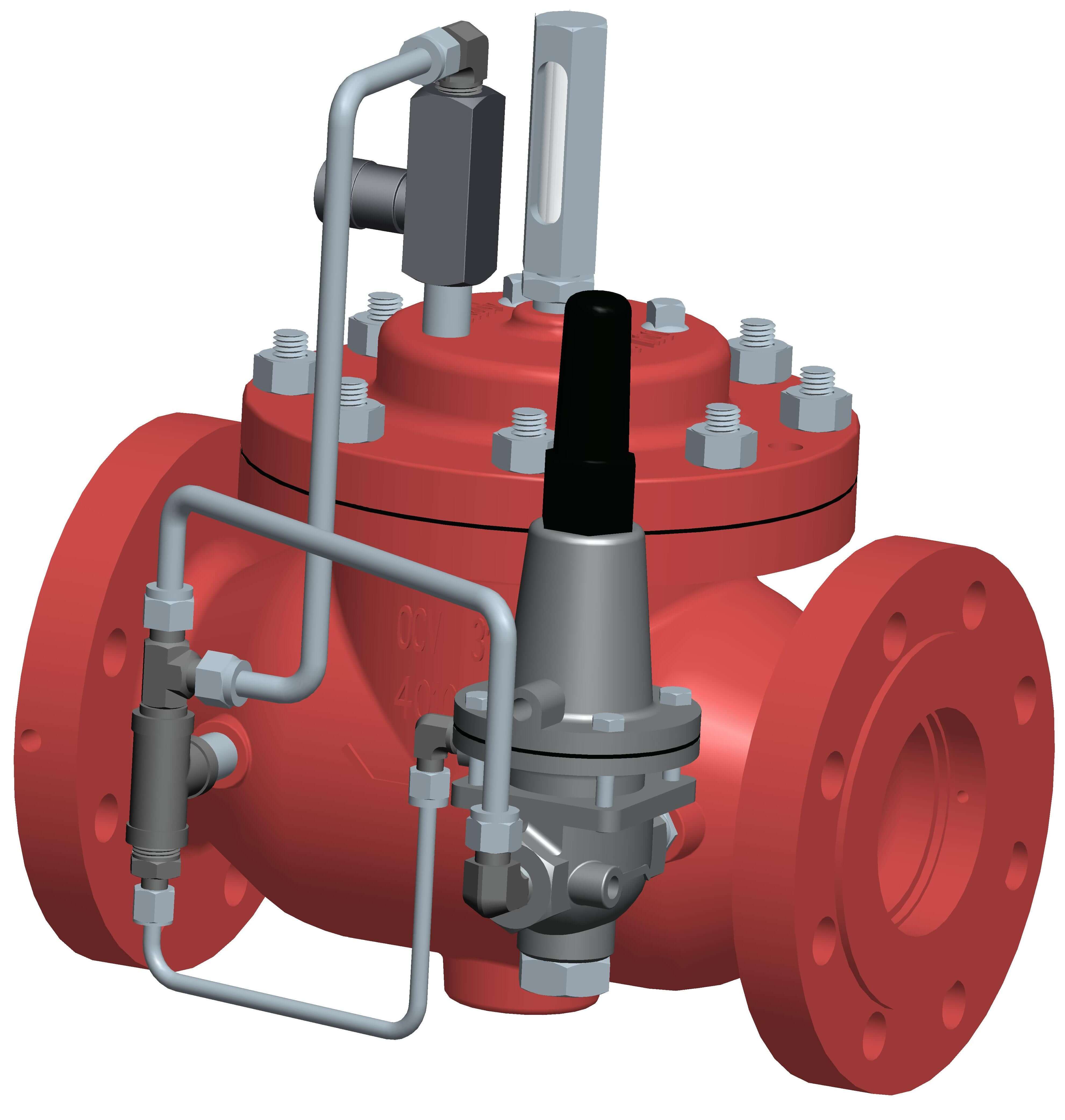

Model 108-2 Pressure Sustaining/ Backpressure Control Valves

The Model 108-2 has a wide range of applications: anywhere a system must be protected from pressures that are too high (relief) or too low (sustaining). Typical applications include pump systems and fuel distribution systems.

Model Features:

  • Relief Valve: Limits inlet pressure by relieving excess pressure
  • Pressure Sustaining: Prevents inlet pressure from dropping below a predetermined minimum
  • Operates over a wide flow range
  • Inlet pressure is adjustable with a single screw
  • Quick opening; adjustable closing speed
  • Can be maintained without removal from the line
  • Factory tested and can be pre-set to requirements
