116-3FC

116-3FC

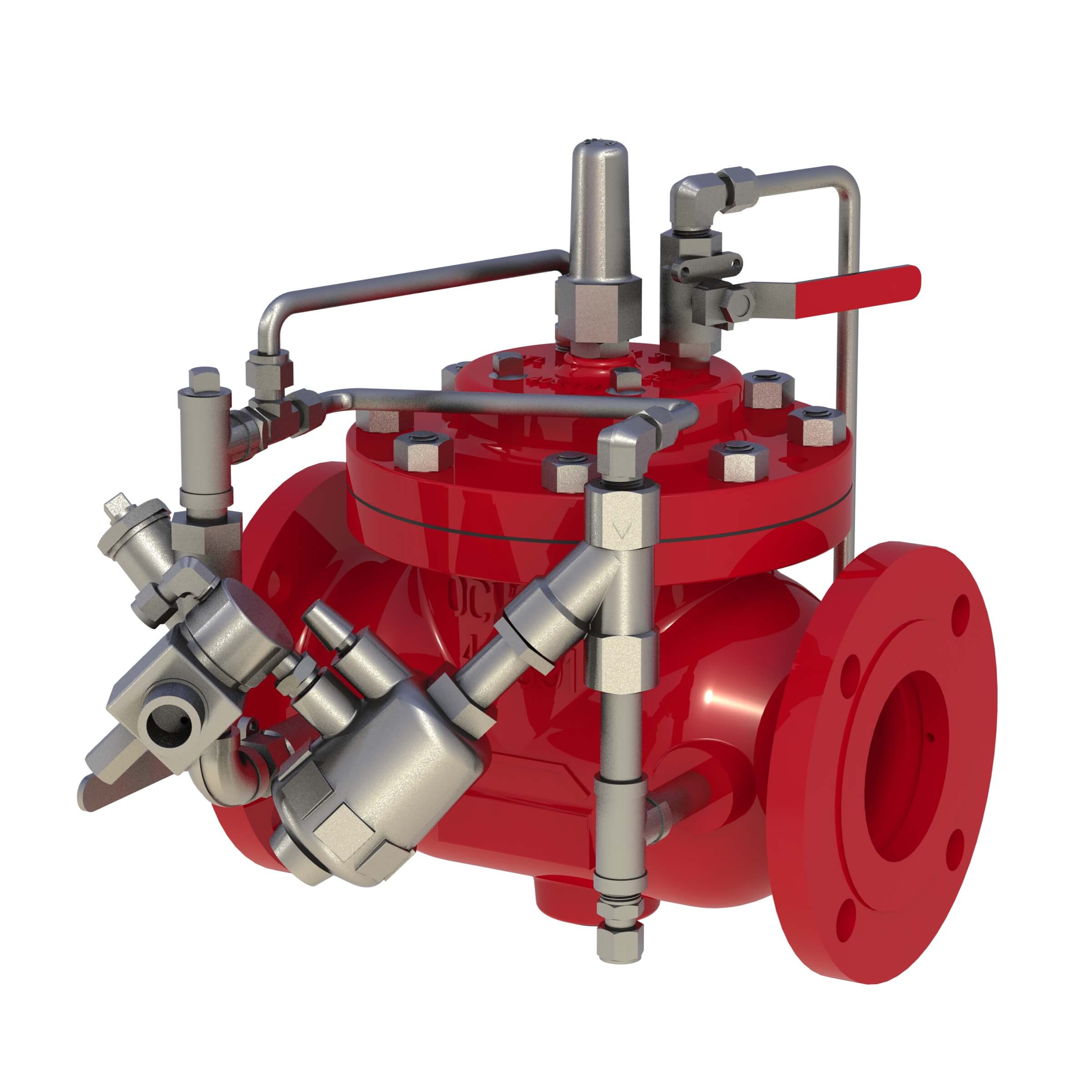

Electrically or Pneumatically Actuated Deluge Valve

Electrically or pneumatically actuated, pilot controlled deluge valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when the pneumatic supply pressure is removed, or by an electric command. An emergency manual release valve is fitted as standard.



FEATURES & BENEFITS

  • Opens quickly when the pneumatic supply pressure is removed, or when the solenoid valve is energized (specify energize-to-open or energize-to-close)
  • Manual override to open the valve regardless of pneumatic pilot or solenoid valve position
  • Visual indicator for indication of valve position
  • Large supply drain port to drain inlet side piping
  • Solenoid operated main valve
  • No adjustments are necessary
  • Factory tested
  • UL Listed for deluge service in sizes 3” thru 10”
  • Can be installed vertically or horizontally
  • ANSI Flanged Class #150 or Class #300
  • Wide range of materials available
  • Options available including opening and/or closing speed controls, limit switch assembly and pressure gauge(s)
