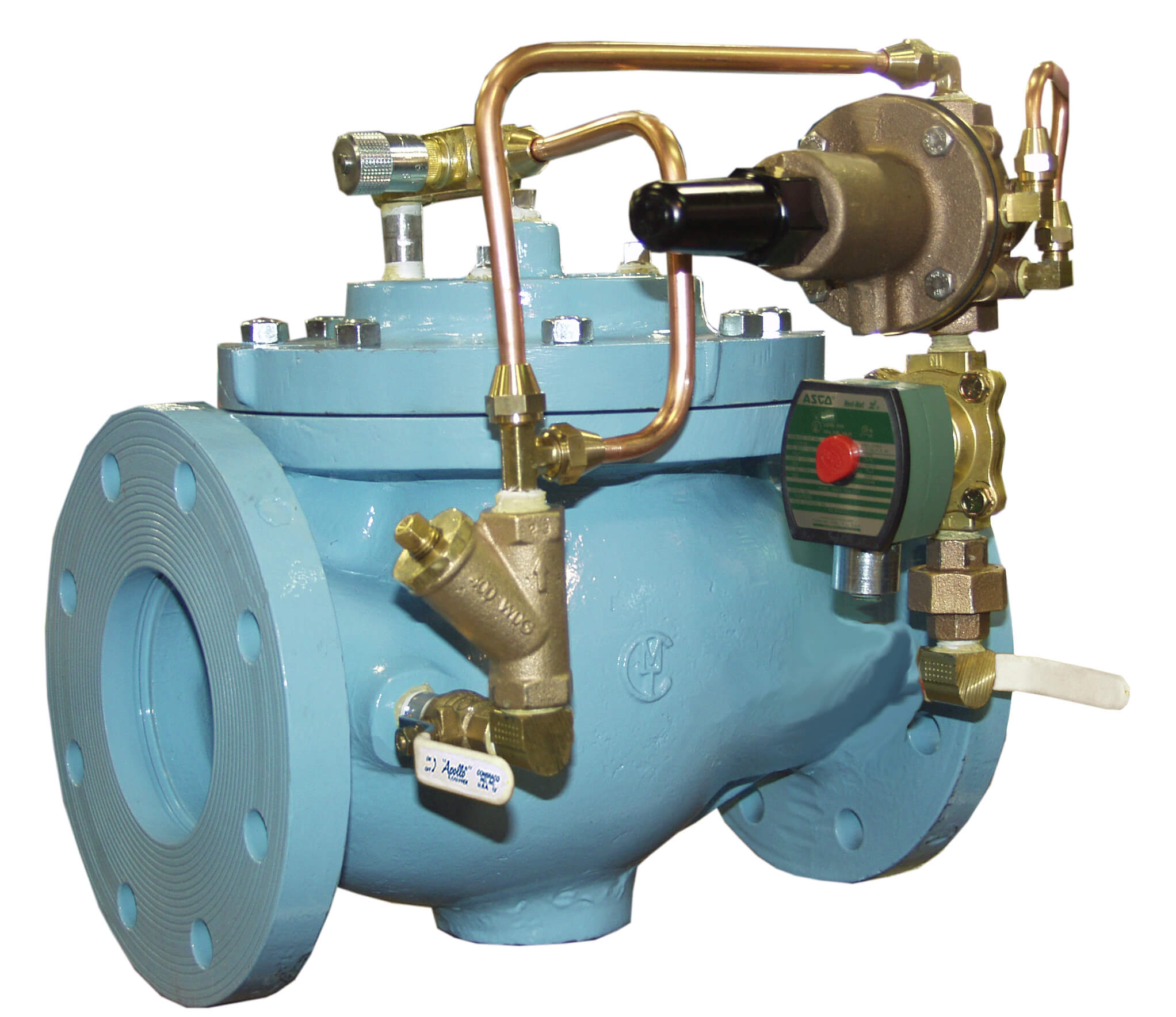

Model 127-80 Pressure Reducing and Solenoid Shut-Off Valve

Model 127-80 Pressure Reducing and Solenoid Shut-Off Valve

The Model 127-80 has a wide range of applications for anywhere a pressure must be reduced to a manageable level, combined with a need for an on/off electrical operation. Typical examples include pump systems, zone pressure control in municipal and industrial water, process pressure control, irrigation systems, and petroleum loading terminals.


  • Reduces a higher inlet pressure to a lower outlet pressure
  • Constant outlet pressure over wide flow range
  • Electrically operated solenoid allows valve to open (reduce pressure) or shut-off (close)
  • Pilot-operated main valve not subject to pressure fall off
  • Outlet pressure is adjustable with single screw
  • Can be maintained without removal from the line
  • Adjustable opening/response speed
  • Factory tested and can be pre-set to requirements
