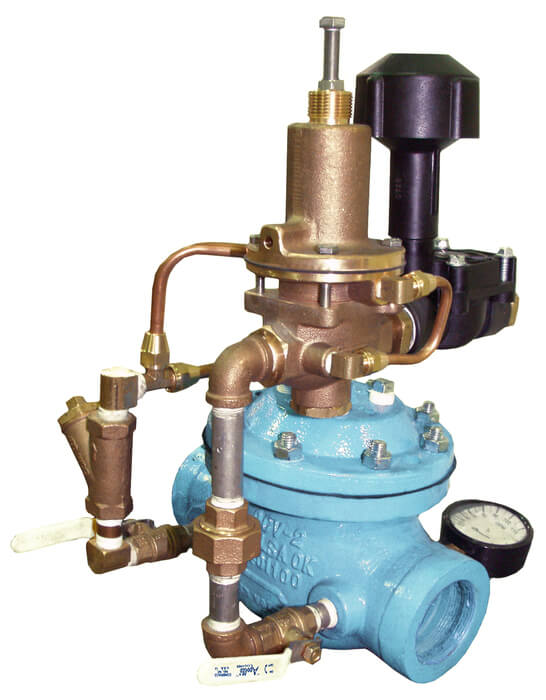

Model 127FAV Flow Control and Programmable Solenoid Valve

Model 127FAV Flow Control and Programmable Solenoid Valve

The model 127FAV has a wide range of applications anywhere it is necessary to open and close a valve automatically while controlling flow rate. The 127FAV combines flow control capability with programmable predetermined time intervals without the use of external electric power. Typical examples include automated line flushing with rate of flow control, unmanned dead end flushing and potable water tank refreshing

MODEL FEATURES:

  • Model 1340 Pilot gives user a wide range of adjustable flow capabilities
  • Flow Rate read-out gauge in GPM – 0-200GPM
  • Excellent for remote systems where power is unavailable (self-contained and portable)
  • Manual on/off
  • Programmable:
    – Valve operating time from 1 min to 12 hours per day
    – 6 different operational programs per day up to 7 days a week
    – Programmable rain delay for 1 to 99 days (shut down for winter, December… etc)
  • Powered by lithium ion technology good for 10 years
  • LCD display with clock and low battery indicator and rain delay as programmed
  • External rain sensor option available (for fixed locations)



Model Sheet Model Sheet (metric) Specifications Animation Operations Manual
