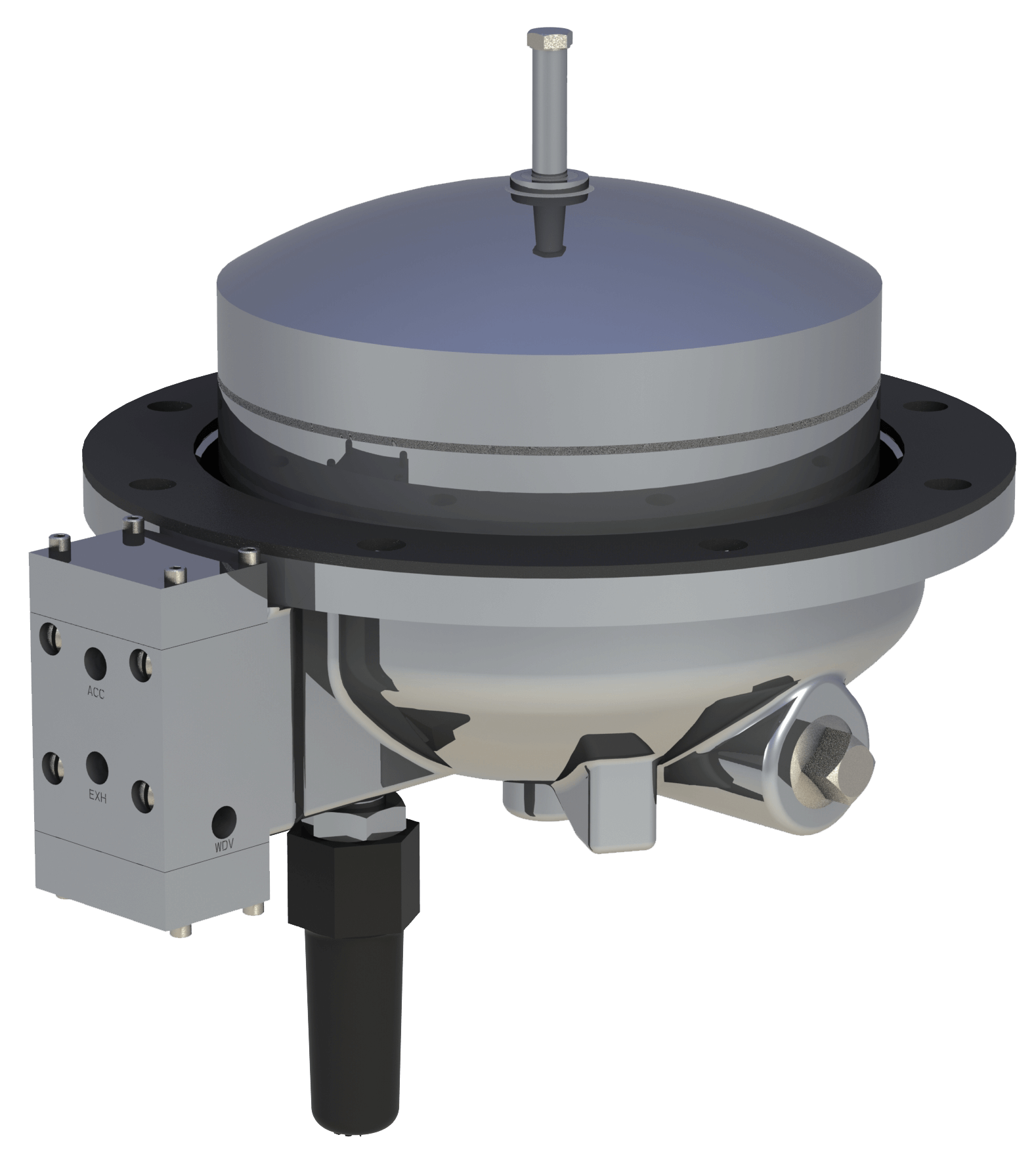

Model 800H Interface Float Pilot- Bottom Mounted

Model 800H Interface Float Pilot- Bottom Mounted

The Model 800H is a bottom-mounted filter separator float that allows only the discharge of clean, water-free fuel from the filter separator.


  • (Formerly MODEL P524)
  • Bottom-mount flange (10″ diameter)
  • Low profile float
  • Applicable where vertical clearance inside filter separator is limited
  • Integral water drain valve optional
  • Pilot float “rides” the interface between water and fuel
  • Four-way control to actuate discharge slug valve and/or automatic water drain valve
  • Uses time-proven 800 pilot block (see Model Sheet 800)
  • Stainless Steel pilot and float assembly
  • Manual tester standard
  • Factory tested
Model SheetModel Sheet (metric)SpecificationsAnimationOperations Manual
