SERIES 300

SERIES 300

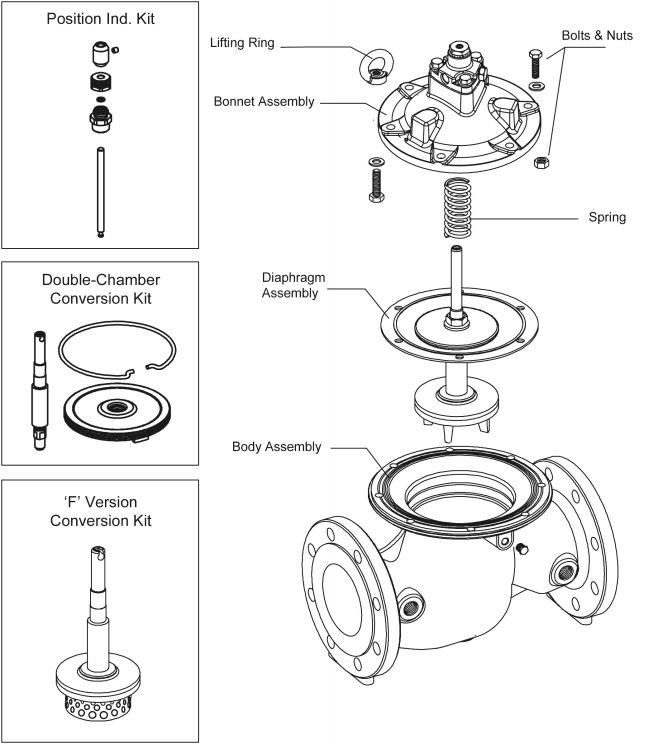

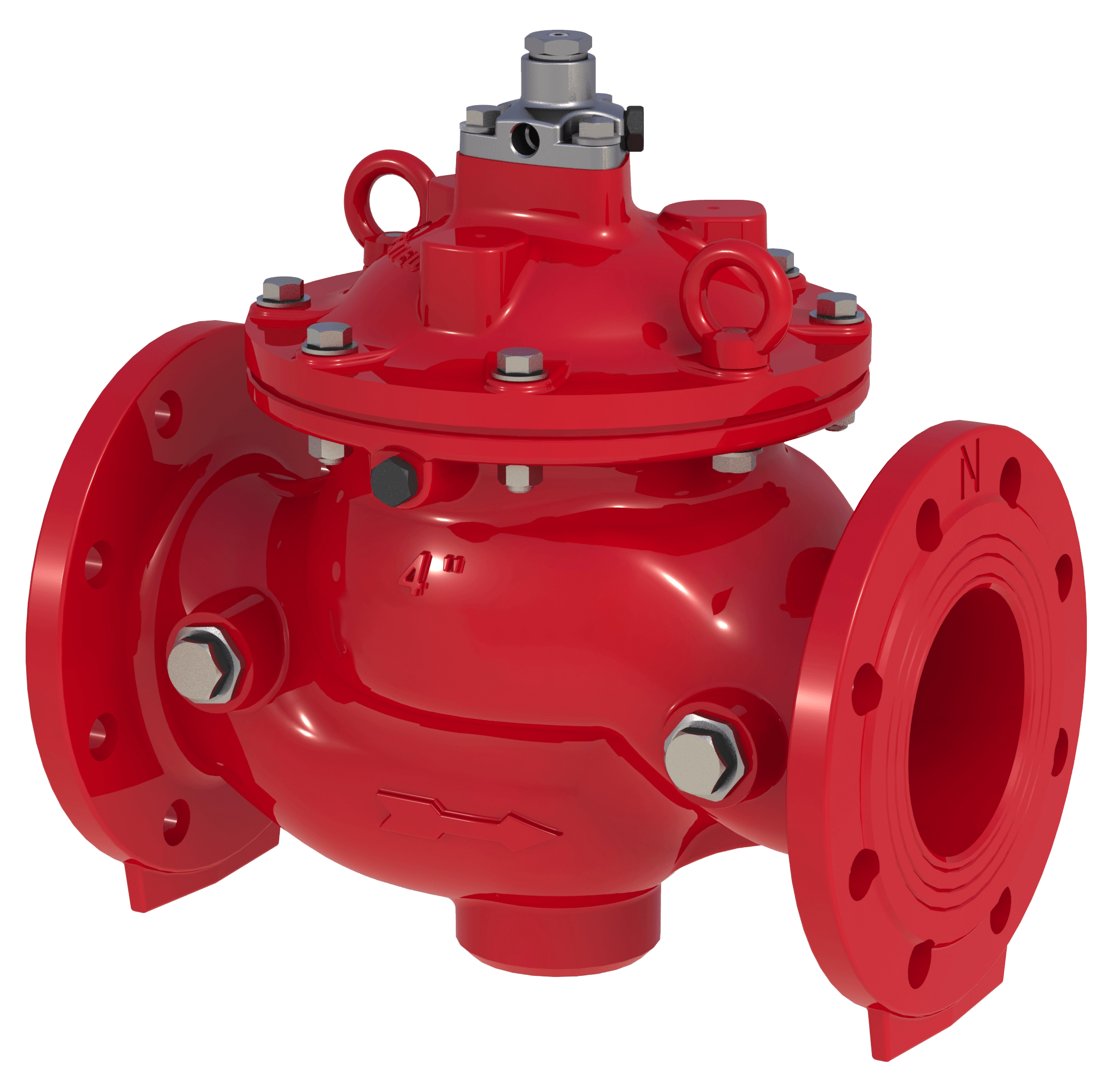

The Series 300 control valves are automatic, hydraulically actuated, diaphragm operated, rigid seal globe pattern control valves. These valves are designed for use in fire protection applications, including deluge, pre-action, pressure control, monitors, hydrants and are suitable for water, foam and seawater systems. The valves consist of three major components: body, cover, and internal trim assembly.

UL Listed Basic Untrimmed Valve Models: 30, 30U, 30CU

Model 30: Up to 375psi working pressure, globe pattern, flanged, grooved & threaded.
Model 30U: Up to 375psi working pressure, globe pattern, flanged, grooved & threaded, with drain port.
Model 30CU: Up to 375psi working pressure, globe pattern, double-chamber, flanged, grooved & threaded, with drain port.

UL Listed under the following categories:
  – “Special Systems Water Control Valves” Deluge (VLFT) – Models 30U &
30CU
  – “Fire Pump Pressure Relief Valves” (QXZQ) – Model 30
  – “Special System Water Control Valves, Pressure Reducing and Pressure Control” (VLMT) – Models 30 & 30U
• Lloyd’s type approval
• GOST-R
• Manufacture and conformity assessment of pressure equipment & assemblies Directive (97/23/EC / EN1074)

Consult the UL listing guide or contact OCV Fluid Solutions for a complete list of approved applications and valve sizes.

Valve Features

STANDARD

• Listed & approved for use in fire protection systems by various global standards
• Quick opening; Non-slam closing operation
• Drip-tight shut off to ANSI FCI 70-2 VI seat leakage class
• Simple and reliable construction
• Easy installation & maintenance
• High-grade construction materials
• Reliable pressure control
• Low pressure losses at high flow rates

OPTIONAL

• Local or remote reset
• Electric, pneumatic & electro-pneumatic control trims
• Explosion proof solenoids & trim accessories
• Seawater & foam concentrate services

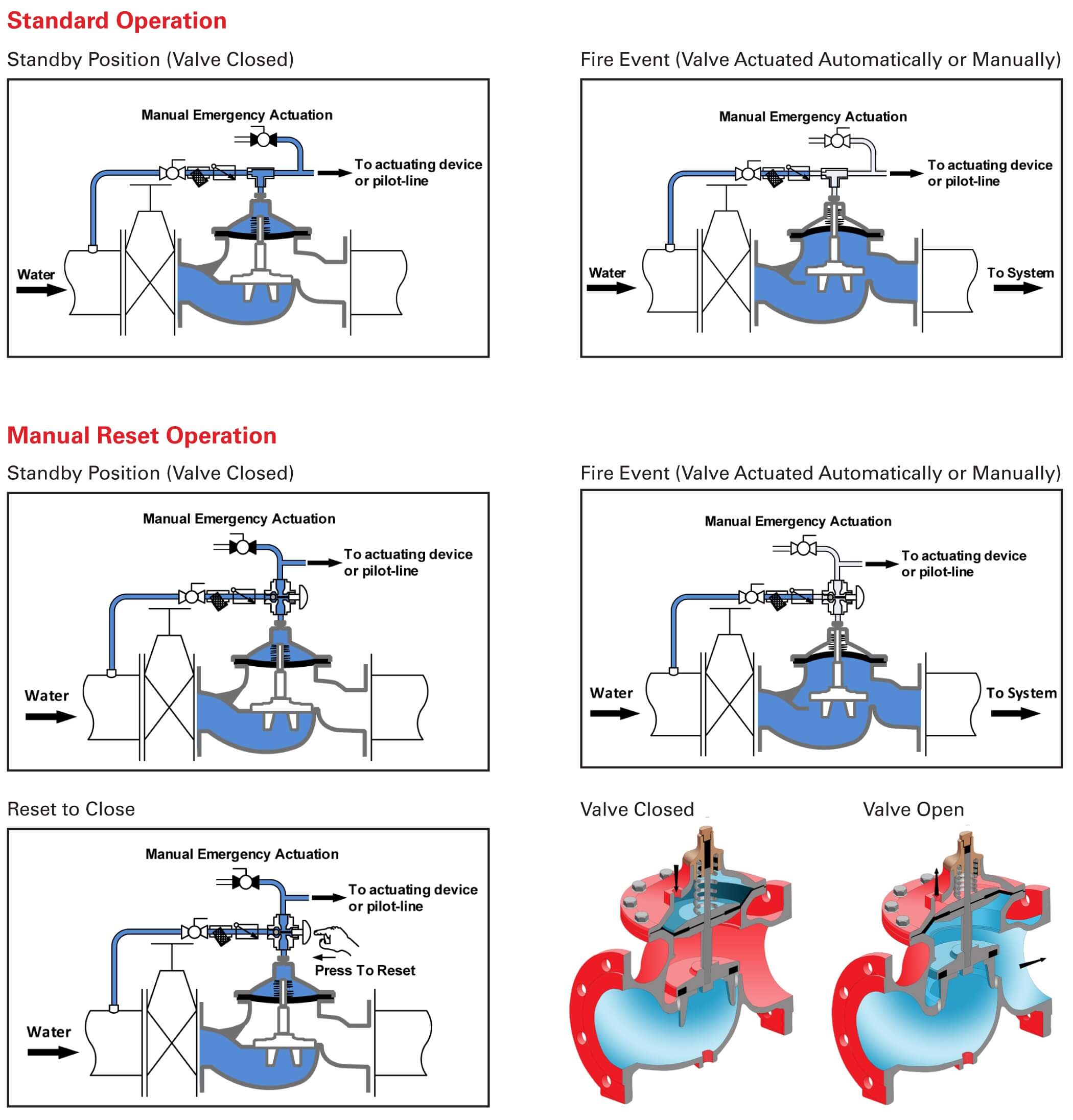

Valve Operation

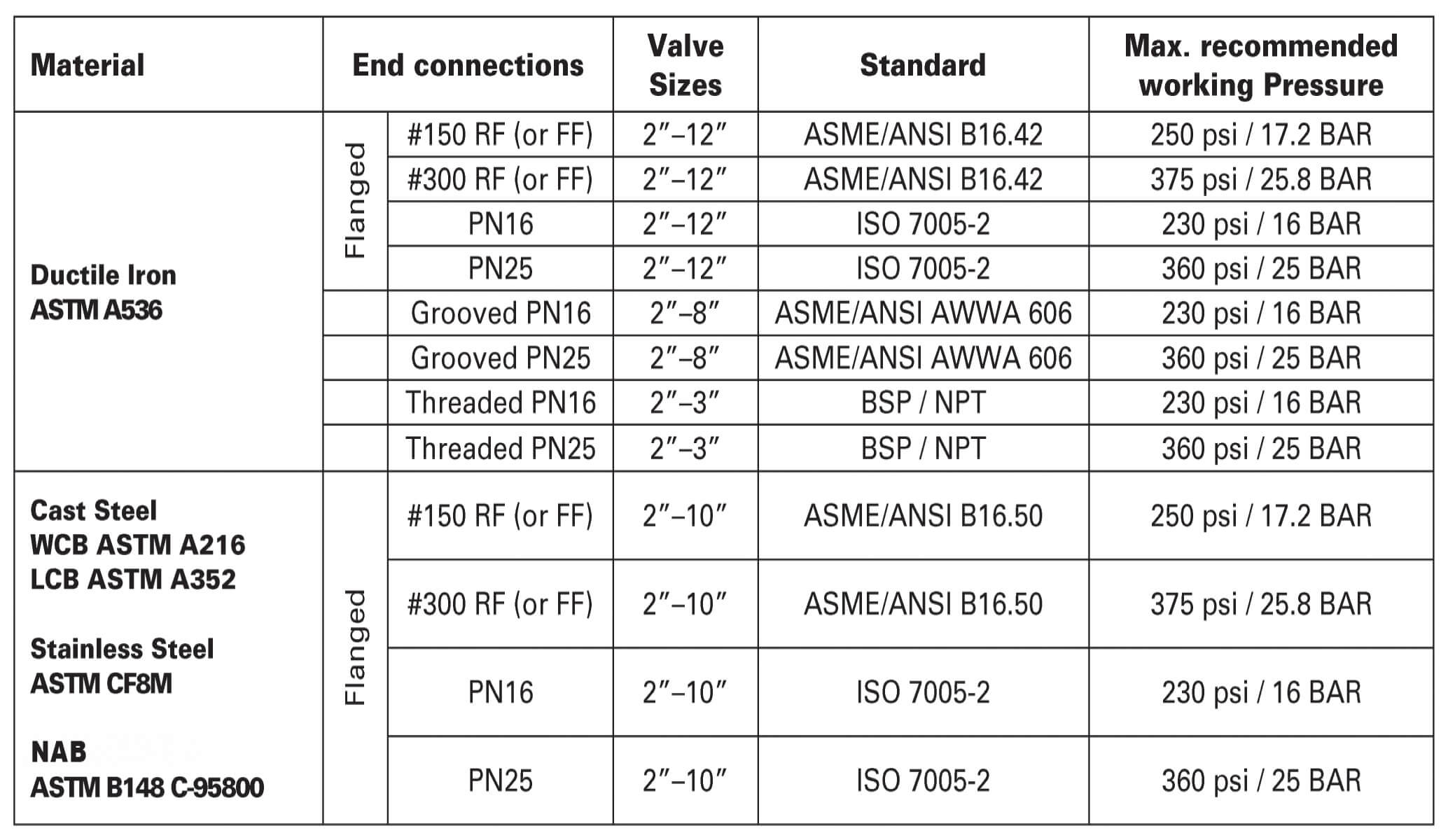

PRESSURE RATING

Recommended nominal system pressure to flange class for typical materials as:

  • Ductile Iron ASTM A536
  • Cast Steel ASTM A216 & ASTM A352 LCB
  • Stainless Steel ASTM CF8M
  • NAB ASTM B148 C-95800

• 250psi nominal system pressure for flanges ANSI B16.42 & ANSI B16.50 Class #150 accordingly
• 375psi maximal system pressure for flanges ANSI B16.42 & ANSI B16.50 Class #300 accordingly







Material Specifications

COMPONENTS



SPECIFICATIONS

Temperature:

  • Water up to 85°C / 185°F max

Sizes:

  • Straight Flow: 1.5”- 40” / 40-1000 mm
  • UL Listed: 2”- 12” / 50-300 mm
  • Lloyd’s Type Approved: 2”- 24” / 50-600 mm

End Connections:

  • Flanged: 1.5”- 40”: ISO PN16 and PN25; ANSI B16.42 & B16.5 Class #150 & #300
    Additional options available upon request
  • Grooved: 2” – 8”: ASME/ANSI AWWA 606
  • Threaded: 1.5” – 2”: BSP or NPT

Body & Cover Material:

  • Ductile Iron ASTM A536
  • Cast Steel ASTM A216 & A352 LCB
  • Stainless Steel ASTM CF8M
  • NAB ASTM B148 C-95800

Coating Material:

  • High Built, Fusion Bonded Epoxy

Optional Coating Material:

  • UV Protection
  • Polyester
  • Other coatings conforming to ISO-12944 C4, C5 & C5M

Internal Trim Material:

  • Stainless Steel
  • Bronze

Elastomers:

  • BUNA-N
  • Viton
  • EPDM

Control Trim & Accessories:

  • Brass
  • Stainless Steel
  • NAB
  • Monel
  • Super Duplex

Optional Components:

  • Pressure Reducing Feature
  • Position Indicator & Proximity Switch Assembly
  • Pressure Switch
  • Alarm Test Trim
  • Drain Valve
  • Explosion Proof
  • Open/Close Speed Control
  • Block & Bleed Valves for Pressure Sensing Components
  • PPCS (Pneumatic Pressure Control System for Pneumatically Actuated Models

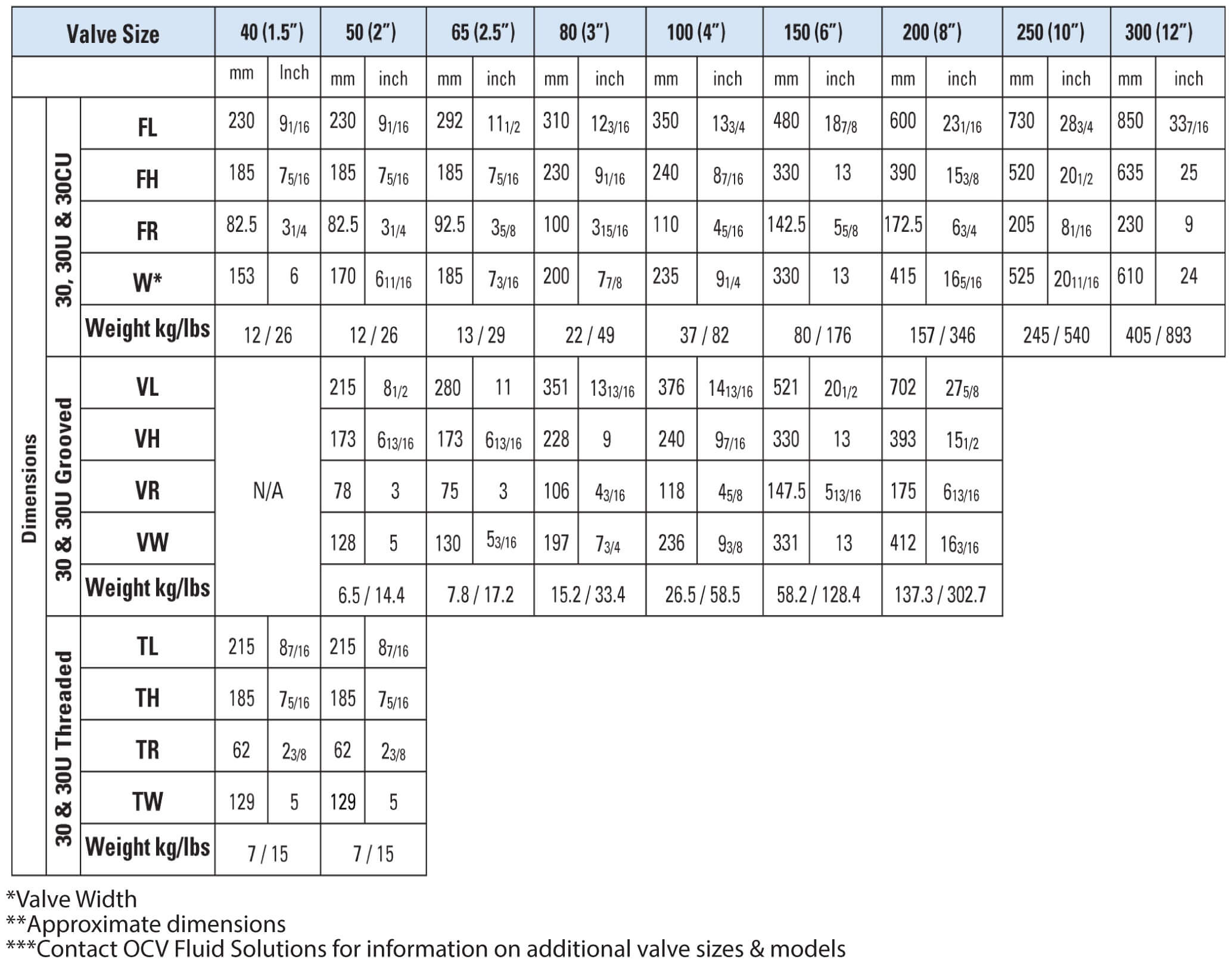

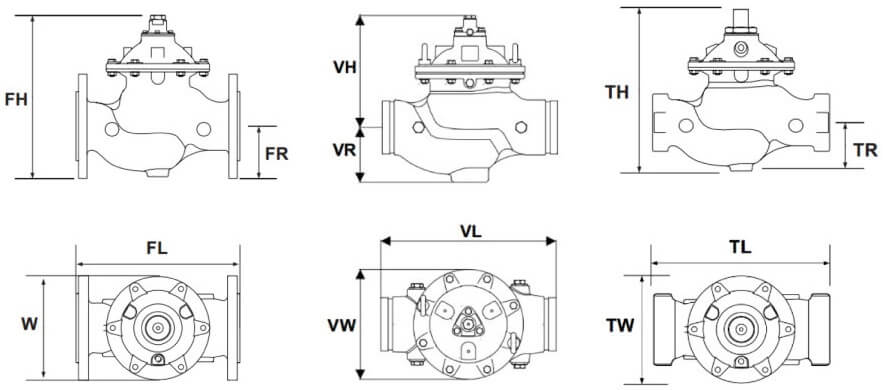

Dimensions
