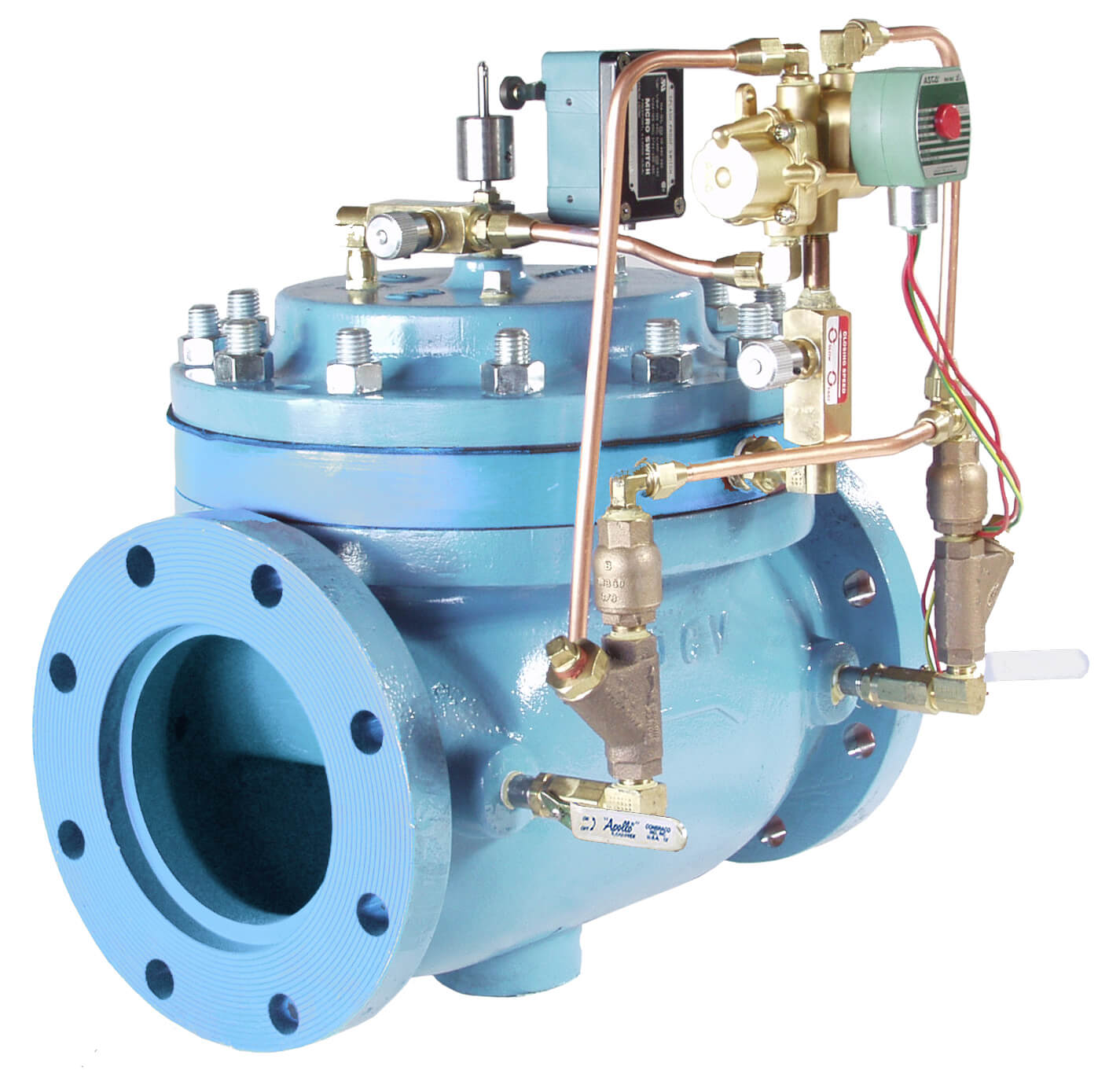

Model 125-27 Booster Pump Control Valve

Model 125-27 Booster Pump Control Valve

The Model 125-27, primarily designed for use with centrifugal booster pumps, can also be used on well pumps with relatively shallow lifts where the pump design permits starting against a closed valve. Because of its lift check feature, the 125-27 is ideally suited to those pumping applications where little or no back flow can be tolerated.

MODEL FEATURES:

  • Eliminates surges associated with starting and stopping the pump
  • Pump starts against a closed valve that then gradually opens at a controlled rate
  • Valve gradually closes at a controlled rate while pump continues to run
  • Pump stops when valve is fully closed
  • Dual chamber design allows full opening and minimum pressure loss at any flow rate
  • Integral lift check feature closes valve immediately on power failure
  • Separate adjustable opening and closing speeds
  • Can be maintained without removal from the line
  • Factory tested and can be pre-set to requirements
Model 125-27 Booster Pump Control Valves
Model Sheet Model Sheet (metric) Specifications Animation Operations Manual
