Series 116FC Deluge Control Valves

Series 116FC Deluge Control Valves

The Series 116FC Deluge Control Valves automatically opens to admit water through the main line when the supply pressure is removed.

Series 116FC Deluge Control Valves Features

  • Opens quickly when the pneumatic supply pressure is removed
  • Manual override to open the valve regardless of pneumatic pilot position
  • Visual indicator for indication of valve position
  • Large supply drain port to drain inlet side piping
  • Pilot operated main valve
  • No adjustments are necessary
  • Factory tested
  • UL Listed for deluge service in sizes 3″ thru 10″
  • Horizontal or vertical mounting in all sizes
  • ANSI Flanged Class 150 or Class 300
  • Wide range of materials available
116FC Deluge Control Valves

Valve Features

  • Opens quickly when the pneumatic supply pressure is removed
  • Manual override to open the valve regardless of pneumatic pilot position
  • Visual indicator for indication of valve position
  • Large supply drain port to drain inlet side piping
  • Pilot operated main valve
  • No adjustments are necessary
  • Factory tested
  • UL Listed for deluge service in sizes 3″ thru 10″
  • Horizontal or vertical mounting in all sizes
  • ANSI Flanged Class 150 or Class 300
  • Wide range of materials available

Operation

The spring loaded pneumatic pilot opens when its air supply pressure is removed. This action allows the main valve to open fully, admitting water through the main line. The valve may also be opened by utilizing the manual override ball valve on the bonnet, which allows opening of the main valve regardless of pneumatic pilot position. The valve closes when the air supply pressure to the pneumatic pilot is pressurized again.

Deluge Control Valve Closed

Valve Closed

When line pressure from the valve inlet is applied to the cover chamber, pressuring the diaphragm, the valve is closed drip-tight.

Deluge Control Valve Open

Valve Open

When diaphragm chamber pressure is vented, the valve travels to the full open position.

Deluge Control Valve Modulating

Valve Modulating

The valve is between full open and closed. The valve’s control pilot modulates the pressure in the diaphragm chamber, positioning the valve to control the desired pressure or flow. OCV pilot systems provide accurate control in a wide range of performance requirements.

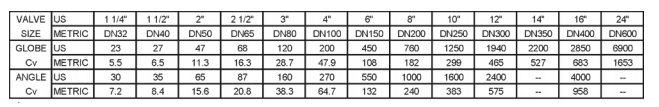

BASIC VALVE FLOW CHARACTERISTICS

Deluge Flow Characteristics

2016-07-12_13-42-03

Material Specifications

2016-07-12_13-33-28

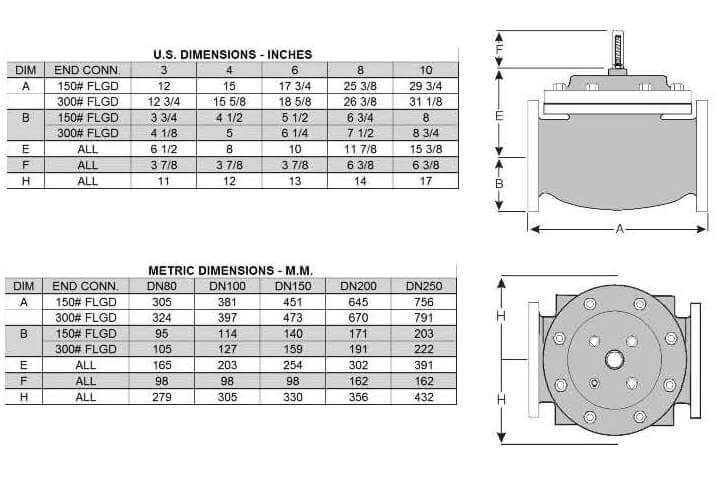

Dimensions

116fc-dims_page_2



OCV deluge valves are UL Listed for mounting in the horizontal or vertical position. Space should be taken into consideration when mounting valves and their pilot systems.

A routine inspection & maintenance program should be established and conducted yearly by a qualified technician. Consult our factory @ 1-888-628-8258 for parts and service.



When ordering your 116FC,

please provide:

Model Number – Valve size – Globe (consult factory for Angle) – Flanged 150# or 300# ANSI – Trim Material – Special needs / or Installation Requirements add attached image
